Manufacturer No:

FR05-S1-NO-1-004

Manufacturer:

Fractus Antennas S.L.

Package:

SMD/SMT

Description:

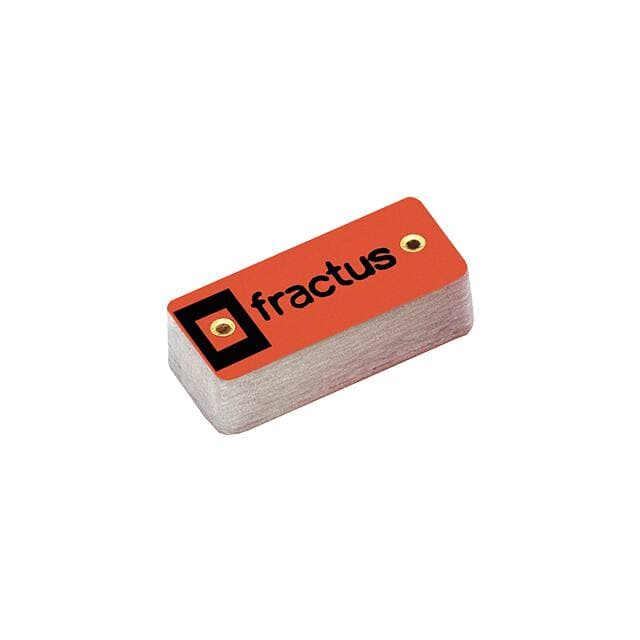

2 Bands Chip UHF 2GHz~3GHz SHF f > 4GHz Surface Mount Solder 2.45GHz 5.3875GHz 1.5dBi, 4.7dBi Tape & Reel (TR) 0.079 2.00mm 802.11a/b/g/n, WLAN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FR05-S1-NO-1-004 information

Fractus Antennas S.L. FR05-S1-NO-1-004 technical specifications, attributes, parameters and parts with similar specifications to Fractus Antennas S.L. FR05-S1-NO-1-004.

  • Type
  • Parameter
  • Factory Lead Time
  • 4 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SMD/SMT
  • Number of Pins
  • 2
  • Manufacturer Package Identifier
  • FR05-S1-NO-1-004
  • Packaging
  • Tape & Reel (TR)
  • Series
  • Compact Dual-band Reach Xtend?
  • Published
  • 2015
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Termination
  • Solder
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Applications
  • 802.11a/b/g/n, WLAN
  • Impedance
  • 50Ohm
  • Gain
  • 1.5dBi, 4.7dBi
  • Max Frequency
  • 5.875GHz
  • Frequency Range
  • 2.4GHz~2.5GHz 4.9GHz~5.875GHz
  • RF Family/Standard
  • WiFi
  • Antenna Type
  • Chip
  • VSWR
  • 2
  • Number of Bands
  • 2
  • Frequency Group
  • UHF 2GHz~3GHz SHF f > 4GHz
  • Height
  • 2.2mm
  • Height (Max)
  • 0.079 2.00mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Fractus Antennas S.L. FR05-S1-NO-1-004.

Datasheets:

FR05-S1-NO-1-004 Overview


The Surface Mount value makes it suitable for general RF Antennas.From the Compact Dual-band Reach Xtend? series, it's a Antenna RF.A solid enclosure of Tape & Reel (TR) surrounds RF modulator.In most RF ics, its Surface Mount makes it suitable.Shipping overseas is convenient with the RF ic packed in SMD/SMT.For functions related to 2 pins, please refer to the RF modulator.Test statistics indicate that the minimum operating temperature of the RF Antennas would be -40°C.Temperatures above 85°C should not be used to operate the RF Antennas.
