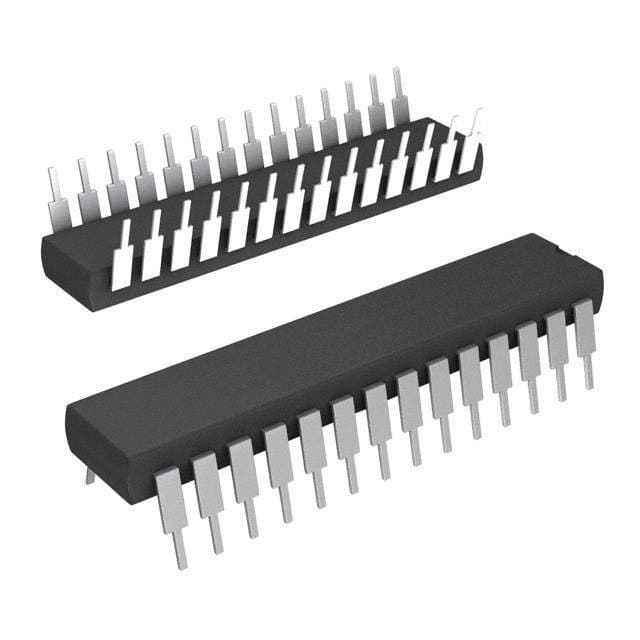

Renesas 72420L25TP
Renesas 72420L25TP

Renesas 72420L25TP

Manufacturer No:

72420L25TP

Manufacturer:

Renesas

Package:

PDIP

Description:

28 Terminations 5V 28 Pin FIFO memory IC 15 ns Min 4.5V V Max 5.5V V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

72420L25TP information

Renesas 72420L25TP technical specifications, attributes, parameters and parts with similar specifications to Renesas 72420L25TP.

  • Type
  • Parameter
  • Contact Plating
  • Lead, Tin
  • Mount
  • Through Hole
  • Package / Case
  • PDIP
  • Number of Pins
  • 28
  • Published
  • 2009
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Part Status
  • Discontinued
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 28
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn85Pb15)
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • HTS Code
  • 8542.32.00.71
  • Subcategory
  • FIFOs
  • Technology
  • CMOS
  • Peak Reflow Temperature (Cel)
  • 245
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 2.54mm
  • Frequency
  • 40MHz
  • Pin Count
  • 28
  • Operating Supply Voltage
  • 5V
  • Temperature Grade
  • COMMERCIAL
  • Max Supply Voltage
  • 5.5V
  • Min Supply Voltage
  • 4.5V
  • Element Configuration
  • Dual
  • Nominal Supply Current
  • 40mA
  • Max Supply Current
  • 40mA
  • Frequency (Max)
  • 40MHz
  • Access Time
  • 15 ns
  • Organization
  • 64X8
  • Density
  • 512 b
  • Standby Current-Max
  • 0.005A
  • Parallel/Serial
  • PARALLEL
  • Sync/Async
  • Synchronous
  • Word Size
  • 8b
  • Memory IC Type
  • OTHER FIFO
  • Bus Directional
  • Unidirectional
  • Retransmit Capability
  • No
  • Output Enable
  • YES
  • Cycle Time
  • 25 ns
  • Length
  • 34.3mm
  • Height Seated (Max)
  • 4.572mm
  • Width
  • 7.62mm
  • Thickness
  • 3.3mm

Download datasheets and manufacturer documentation for Renesas 72420L25TP.

Datasheets:

72420L25TP Overview


PDIP is a package that contains FIFO memory chip.A Through Hole mounting method is recommended.When the supply voltage is 5V , high efficiency is possible.I found that it has 28 terminations in FIFO means.These are the 28 pins for operation.For its operation, 40mA is the maximum current required.A 5V supply voltage will ensure FIFO's maximum efficiency.Keeping the temperature at 0°C degrees Celsius ensures its reliability.By operating at 70°C degrees Celsius, this FIFO products is able to maintain a stable operation.In FIFOs , this gadget is self-contained.In this part, the memory type is OTHER FIFO .In some cases, FIFO operates at a very low supply voltage, such as 4.5V V.A maximum supply voltage of 5.5V volts can be handled by the FIFO memory chip.As a result, it contains a total of 28 pins.When the frequency is set to 40MHz it can maintain good accuracy.It is recommended that the FIFO memory's maximum value be set to 40MHz .In normal circumstances, the component has 5V power supplies.

72420L25TP Features


FIFOs category
Frequency at most


72420L25TP Applications


There are a lot of Integrated Device Technology (IDT)
72420L25TP FIFOs Memory applications.


  • Cameras
  • Multimedia
  • TVs
  • Computers
  • Disk Controllers
  • Communications
  • Networking
  • Multi-stage synchronizer
  • Signal processing
  • Data communications
