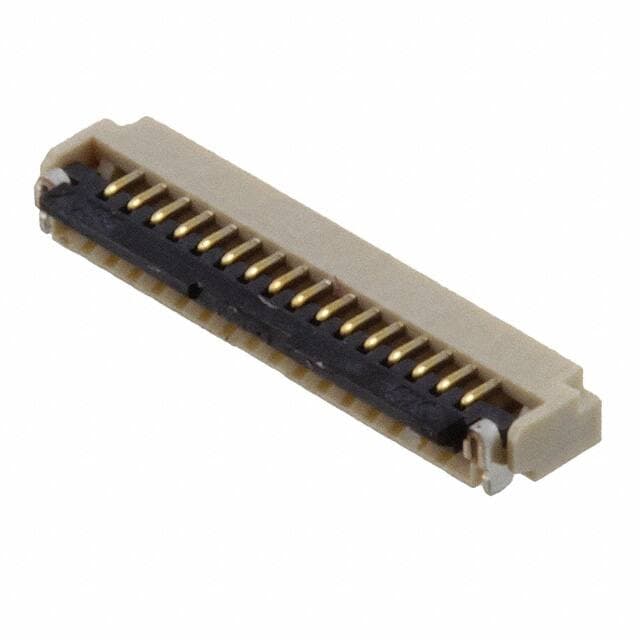

HIROSE FH33J-16S-0.5SH(10)
HIROSE FH33J-16S-0.5SH(10)

HIROSE FH33J-16S-0.5SH(10)

Manufacturer No:

FH33J-16S-0.5SH(10)

Manufacturer:

HIROSE

Package:

Description:

FH33J Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 16 Positions Surface Mount, Right Angle Gold -55°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FH33J-16S-0.5SH(10) information

HIROSE FH33J-16S-0.5SH(10) technical specifications, attributes, parameters and parts with similar specifications to HIROSE FH33J-16S-0.5SH(10).

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Liquid Crystal Polymer (LCP), Halogen Free
  • Actuator Material
  • Polyphenylene Sulfide (PPS)
  • Operating Temperature
  • -55°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • FH33J
  • JESD-609 Code
  • e3
  • Feature
  • Zero Insertion Force (ZIF)
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • FFC/FPC CONNECTOR
  • Number of Positions
  • 16
  • Number of Rows
  • 1
  • Gender
  • Receptacle
  • Voltage - Rated
  • 50V
  • Additional Feature
  • ZIF, LOW PROFILE
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Total Number of Contacts
  • 16
  • Reach Compliance Code
  • unknown
  • Current Rating
  • 500mA
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 1
  • UL Flammability Code
  • 94V-0
  • Contact Resistance
  • 50mOhm
  • Insulation Resistance
  • 500MOhm
  • Wire/Cable Type
  • Flat Flex
  • Mating Cycles
  • 20
  • Flat Flex Type
  • FFC, FPC
  • Connector/Contact Type
  • Contacts, Bottom
  • Cable End Type
  • Tapered
  • Locking Feature
  • Flip Lock
  • Contact Finish Thickness
  • Flash
  • Height Above Board
  • 0.047 1.20mm

Download datasheets and manufacturer documentation for HIROSE FH33J-16S-0.5SH(10).

Datasheets:

FH33J-16S-0.5SH(10) Overview


The product is packaged in FFC/FPC CONNECTOR.Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the FH33J Series, it can be found in this category.There are also other features such as ZIF, LOW PROFILE, to name only a few.With its Zero Insertion Force (ZIF) feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.The device is operating at -55°C~85°C Operating Temperature.

FH33J-16S-0.5SH(10) Features


FH33J series


FH33J-16S-0.5SH(10) Applications


There are a lot of Hirose Electric Co Ltd
FH33J-16S-0.5SH(10) FFC, FPC (Flat Flexible) Connectors applications.


  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
