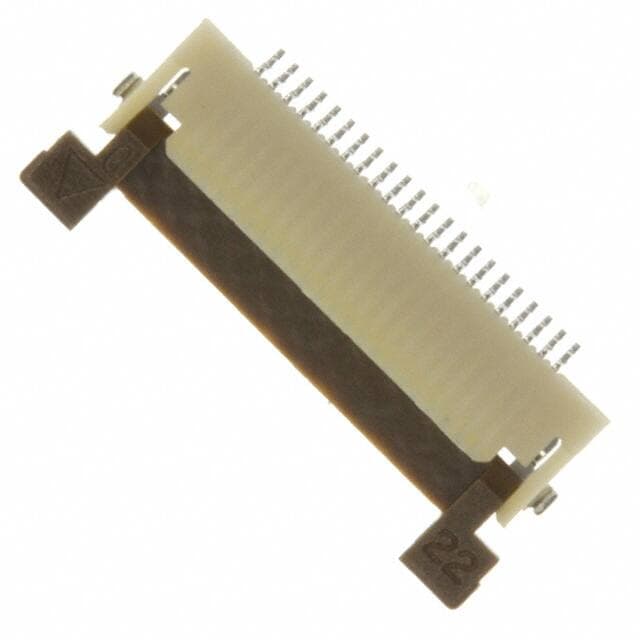

HIROSE FH12A-22S-0.5SH(55)
HIROSE FH12A-22S-0.5SH(55)

HIROSE FH12A-22S-0.5SH(55)

Manufacturer No:

FH12A-22S-0.5SH(55)

Manufacturer:

HIROSE

Package:

Description:

FH12 Series FFC, FPC Contacts, Top Tape & Reel (TR) 0.020 0.50mm Solder 22 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FH12A-22S-0.5SH(55) information

HIROSE FH12A-22S-0.5SH(55) technical specifications, attributes, parameters and parts with similar specifications to HIROSE FH12A-22S-0.5SH(55).

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Polyamide (PA), Nylon
  • Actuator Material
  • Polyphenylene Sulfide (PPS)
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • FH12
  • JESD-609 Code
  • e4
  • Feature
  • Zero Insertion Force (ZIF)
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • FFC/FPC CONNECTOR
  • Number of Positions
  • 22
  • Number of Rows
  • 1
  • Gender
  • Female
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Total Number of Contacts
  • 22
  • Orientation
  • Right Angle
  • Depth
  • 6.2mm
  • Reach Compliance Code
  • unknown
  • Current Rating
  • 500mA
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 1
  • Lead Pitch
  • 500?m
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.079 inch
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Beige
  • Contact Style
  • BELLOWED TYPE
  • Contact Resistance
  • 50mOhm
  • Insulation Resistance
  • 500000000Ohm
  • Max Voltage Rating (AC)
  • 50V
  • Max Current Rating
  • 400mA
  • Contact Pattern
  • RECTANGULAR

Download datasheets and manufacturer documentation for HIROSE FH12A-22S-0.5SH(55).

Datasheets:

FH12A-22S-0.5SH(55) Overview


A FFC/FPC CONNECTOR packaging is included.Surface Mount, Right Angle is the mount type.Tape & Reel (TR) cases are used to package the product.This product is in the FH12 Series.As a result of its Zero Insertion Force (ZIF) feature, it possesses a great deal of power.There's a Surface Mount on the part.Operating temperature is -40°C~85°C.
