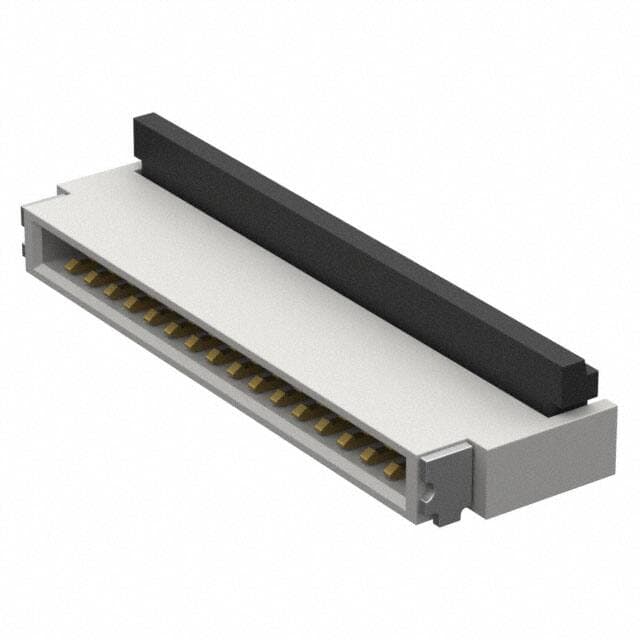

GCT FFC2B28-16-G

Manufacturer No:

FFC2B28-16-G

Manufacturer:

Package:

Description:

FFC2B28 Series FFC, FPC Contacts, Top and Bottom Cut Tape (CT) 0.020 0.50mm Solder 16 Positions Surface Mount, Right Angle Gold -25°C~85°C 0.2A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FFC2B28-16-G information

GCT FFC2B28-16-G technical specifications, attributes, parameters and parts with similar specifications to GCT FFC2B28-16-G.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Copper Alloy

Mounting Type
Surface Mount, Right Angle

Housing Material
Thermoplastic

Operating Temperature
-25°C~85°C

Packaging
Cut Tape (CT)

Series
FFC2B28

Feature
Solder Retention

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Number of Positions
16

Voltage - Rated
30V

Current Rating (Amps)
0.2A

Pitch
0.020 0.50mm

Contact Finish
Gold

Housing Color
Natural

Mating Cycles
20

Flat Flex Type
FFC, FPC

Connector/Contact Type
Contacts, Top and Bottom

Cable End Type
Tapered

Locking Feature
Flip Lock, Backlock

Actuator Color
Black

Contact Finish Thickness
Flash

FFC, FCB Thickness
0.30mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for GCT FFC2B28-16-G.

Datasheets:

gct-ffc2b2812g-datasheets-2261.pdf

FFC2B28-16-G Overview

Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Cut Tape (CT) case.As a product of the FFC2B28 Series, it can be found in this category.With its Solder Retention feature, it is more powerful in many ways.The device is operating at -25°C~85°C Operating Temperature.

FFC2B28-16-G Features

FFC2B28 series

FFC2B28-16-G Applications

There are a lot of GCT
FFC2B28-16-G FFC, FPC (Flat Flexible) Connectors applications.

Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
