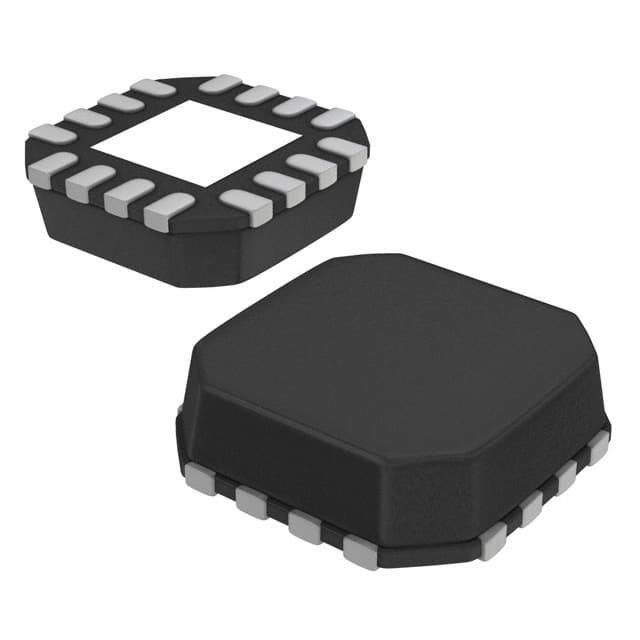

ADI ADG811YCPZ-REEL7

Manufacturer No:

ADG811YCPZ-REEL7

Manufacturer:

ADI

Package:

16-VFQFN Exposed Pad, CSP

Description:

25ns, 5ns SPST - NC 650mOhm QUAD Analog Switches BREAK-BEFORE-MAKE ADG811 16 Pins 1nA 2.5V 16-VFQFN Exposed Pad, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADG811YCPZ-REEL7 information

ADI ADG811YCPZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADG811YCPZ-REEL7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
16-VFQFN Exposed Pad, CSP

Surface Mount
YES

Number of Pins
16

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Resistance
650mOhm

Terminal Finish
Matte Tin (Sn)

Subcategory
Multiplexer or Switches

Max Power Dissipation
14.4μW

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Supply Voltage
2.5V

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
ADG811

Output
SEPARATE OUTPUT

Pin Count
16

Qualification Status
Not Qualified

Power Supplies
1.8/3.3V

Number of Channels
1

Interface
Parallel

Max Supply Voltage
3.6V

Min Supply Voltage
1.65V

Test Frequency
100kHz

Power Dissipation
14.4μW

Max Supply Current
4μA

Turn On Delay Time
25 ns

Number of Inputs
4

Supply Type
Single

Bandwidth
90MHz

Turn-Off Delay Time
5 ns

On-State Resistance (Max)
650mOhm

Multiplexer/Demultiplexer Circuit
1:1

Off-state Isolation-Nom
67 dB

Current - Leakage (IS(off)) (Max)
1nA

Channel Capacitance (CS(off), CD(off))
30pF 35pF

Download datasheets and manufacturer documentation for ADI ADG811YCPZ-REEL7.

ADG811YCPZ-REEL7 Overview

Shipping overseas is convenient with the electronic component packed in 16-VFQFN Exposed Pad, CSP. High reliability is provided by advanced packaging method Tape & Reel (TR). In Surface Mount, this analog switch is mounted. Multiplexers and demultiplexers have a ratio of 1:1. Temperatures around -40°C~125°C TA are extended for operation. Total terminations are 16. High-quality output is provided by the electronic component's 1 channels. If the voltage supply is 2.5V volts, the electrical component should be turned on and run. The electronic part body is injected with 16 pins. A SPST - NC switching circuit is used to build these analog multiplexers. Try searching with ADG811 if you're looking for variants. There is 650mOhm internal resistance in this digital multiplexer. For functions related to 16 pins, please refer to the datasheets. Theswitch device is a typical Multiplexer or Switches. A voltage higher than 3.6V should not normally be supplied to the switches. Analogue multiplexers of the Single supply type that are cost-effective. 1.65V should be the lowest voltage fed to the electronic component. This analog switch requires a voltage of 1.65V~3.6V to drain from a single voltage supply. The analogue multiplexer may be damaged if voltage is greater than 4μA. The analog switch ic utilizes SEPARATE OUTPUT outputs in total. It is possible to operate 4 inputs. A 90MHz-bandwidth can be used for data transfer.

ADG811YCPZ-REEL7 Features

1 Channels
Switch Circuit: SPST - NC
Bandwidth: 90MHz

ADG811YCPZ-REEL7 Applications

There are a lot of Analog Devices Inc.
ADG811YCPZ-REEL7 Analog Switches & Multiplexers ICs applications.

Transmit
Low-Voltage
Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
