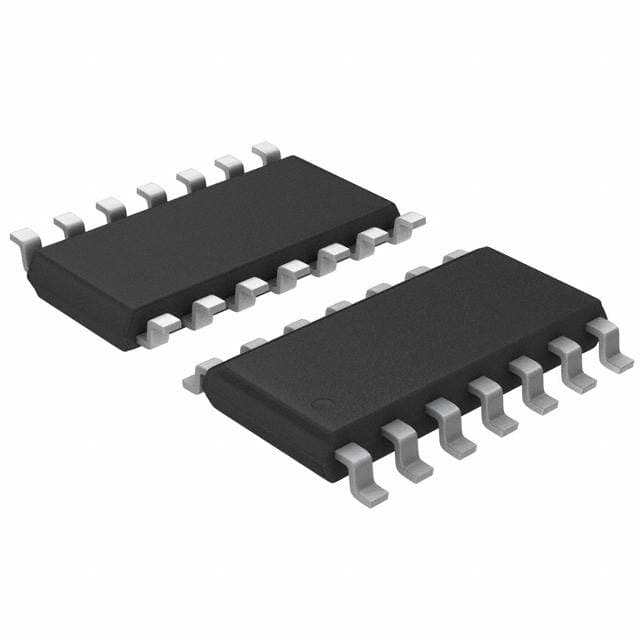

ONSEMI FAN7383MX
ONSEMI FAN7383MX

ONSEMI FAN7383MX

Manufacturer No:

FAN7383MX

Manufacturer:

ONSEMI

Package:

14-SOIC (0.209, 5.30mm Width)

Description:

625V,0.65/0.35A sink/source current, Half Bridge Gate-Drive with variable Deadtime, Shutdown protection

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FAN7383MX information

ONSEMI FAN7383MX technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FAN7383MX.

  • Type
  • Parameter
  • Topology
  • Half-Bridge
  • Isolation Type
  • Junction Isolation
  • Turn Off Prop. Delay Typ (ns)
  • 170
  • Delay Matching
  • 60
  • Power Switch
  • MOSFET / IGBT
  • Number of Outputs
  • 2
  • Vin Max (V)
  • 625
  • Rise Time (ns)
  • 50
  • Case Outline
  • 565BE
  • Container Qty.
  • 3000
  • VCC Max (V)
  • 25
  • Drive Source Current Typ (A)
  • 0.35
  • Turn On Prop. Delay Typ (ns)
  • 500
  • MSL Temp (°C)
  • 260
  • Container Type
  • REEL
  • Fall Time (ns)
  • 30
  • Drive Sink Current Typ (A)
  • 0.65
  • Package Type
  • SOP-14
  • MSL Type
  • 1

Download datasheets and manufacturer documentation for ONSEMI FAN7383MX.

Datasheet:

Package Drawing:

The FAN7383 is a half-bridge gate-drive IC with shutdown and programmable dead-time control functions for driving MOSFETs and IGBTs that operate up to +600V. onsemi’s high voltage process and common-mode noise canceling technique give stable operation of highside drivers under high-dv/dt noise circumstances. An advanced level-shift circuit allows high-side gate driver operation up to VS= -9.8V (typical) for VBS=15V. The UVLO circuits for both channels prevent malfunction when VDD and VBS are lower than the specified threshold voltage. Output drivers typically source/sink 350mA/650mA, respectively, which is suitable for all kinds of half and full bridge inverter.

Application

  • Lighting
  • Other Industrial

Feature

  • Floating Channel for Bootstrap Operation to +600V
  • Typically 350mA/650mA Sourcing/Sinking CurrentDriving Capability for Both Channels
  • Extended Allowable Negative VS Swing to -9.8V forSignal Propagation at VDD<=VBS=15V
  • High-Side Output in Phase of IN Input Signal
  • Built-in UVLO Functions for Both Channels
  • Built-in Common-Mode dv/dt Noise Canceling Circuit
  • Typically Internal 330nsec Minimum Dead Time
  • Programmable Turn-on Delay-Time Control(Dead-Time)
