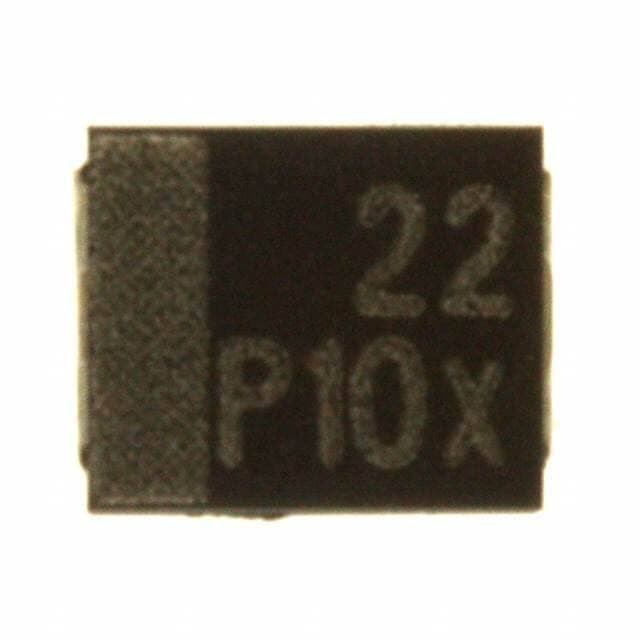

NICHICON F311A226MBA
Manufacturer No:
F311A226MBA
Manufacturer:
Package:
1411 (3528 Metric)
Description:
Molded F31 22?F Capacitor 10V 1 (Unlimited) ±20% 1411 (3528 Metric) Surface Mount General Purpose -55°C~105°C Tape & Reel (TR)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
F311A226MBA information
NICHICON F311A226MBA technical specifications, attributes, parameters and parts with similar specifications to NICHICON F311A226MBA.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 1411 (3528 Metric)
- Terminal Shape
- WRAPAROUND
- Dielectric Material
- TANTALUM (SOLID POLYMER)
- Operating Temperature
- -55°C~105°C
- Packaging
- Tape & Reel (TR)
- Series
- F31
- Published
- 2008
- Size / Dimension
- 0.134Lx0.110W 3.40mmx2.80mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Feature
- General Purpose
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Type
- Molded
- Terminal Finish
- Tin (Sn)
- Voltage - Rated
- 10V
- HTS Code
- 8532.22.00
- Capacitance
- 22?F
- Packing Method
- TR, 7 INCH
- Case Code (Imperial)
- 1210
- ESR (Equivalent Series Resistance)
- 70mOhm @ 100kHz
- Polarity
- POLARIZED
- Rated (DC) Voltage (URdc)
- 10V
- Leakage Current
- 0.022mA
- Ripple Current
- 1035mA
- Tan Delta
- 0.08
- Manufacturer Size Code
- B
- Height Seated (Max)
- 0.047 1.20mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NICHICON F311A226MBA.
Datasheets:
F311A226MBA Overview
Measured ripple current for the part is 1035mA.In order to maintain high efficiency, the ESR (Equivalent Series Resistance) should remain at 70mOhm @ 100kHz.The leakage current of 0.022mA can be supported.22?F is the capacitance of the device.In order for 10V to function properly, it requires the rated (DC) voltage (Urdu).Powered by a voltage of -55°C~105°C, it is powered by AC power.With a voltage of 10V, high efficiency is possible.The maximum height seated of 0.047 1.20mm°C enables stable operation.
F311A226MBA Features
1035mA ripple current
a 70mOhm @ 100kHz ESR (Equivalent Series Resistance)
a leakage current of 0.022mA
with a capacitance of 22?F
a rated (DC) voltage (Urdu) of 10V
an AC voltage of -55°C~105°C
the voltage rating of 10V
F311A226MBA Applications
There are a lot of Nichicon
F311A226MBA applications of tantalum polymer capacitors.
- Smart phone
- Tablets
- Notebook
- LCD TV
- Power supplies
