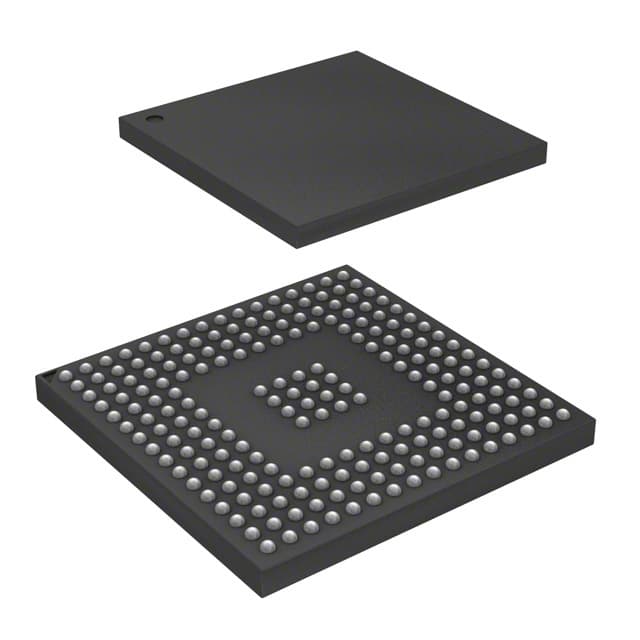

NXP SPC5534MVM80

Manufacturer No:

SPC5534MVM80

Manufacturer:

NXP

Package:

208-BGA

Description:

1MB 1M x 8 FLASH e200z6 32-Bit Microcontroller MPC55xx Qorivva Series PC5534 1.5V 208-BGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SPC5534MVM80 information

NXP SPC5534MVM80 technical specifications, attributes, parameters and parts with similar specifications to NXP SPC5534MVM80.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
208-BGA

Surface Mount
YES

Operating Temperature
-40°C~125°C TA

Packaging
Tray

Series
MPC55xx Qorivva

Published
2008

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
208

HTS Code
8542.31.00.01

Subcategory
Microcontrollers

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
1.5V

Terminal Pitch
1mm

Base Part Number
PC5534

JESD-30 Code
S-PBGA-B208

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
1.65V

Power Supplies
1.53.35V

Supply Voltage-Min (Vsup)
1.35V

Oscillator Type
External

Speed
80MHz

RAM Size
64K x 8

Voltage - Supply (Vcc/Vdd)
1.35V~1.65V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Core Processor
e200z6

Peripherals
DMA, POR, PWM, WDT

Clock Frequency
20MHz

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
1MB 1M x 8

Connectivity
CANbus, EBI/EMI, Ethernet, SCI, SPI

Supply Current-Max
250mA

Bit Size
32

Data Converter
A/D 34x12b

Has ADC
YES

DMA Channels
YES

PWM Channels
YES

ROM (words)
1048576

Screening Level
AEC-Q100

Length
17mm

Width
17mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP SPC5534MVM80.

Environmental Information:

nxpusainc-tef6657hnv102k-environmentalinformation-9391.pdf

SPC5534MVM80 Overview

The package is 208-BGA-shaped. There are 192 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 32-Bit core architecture. The type of program memory it uses is FLASH. Temperatures in the range of -40°C~125°C TA are operated by this Microcontroller. It is part of the MPC55xx Qorivva series of electrical components. Having a size of 1MB 1M x 8, Microcontroller has a program memory of X bytes. A e200z6 Core Processor is at the core of this Microcontroller. This device belongs to the MICROCONTROLLER uPs/uCs/Peripheral ICs category. IC Chip 208 has 208 terminations. 32-bits are used for its size. IC Chip has 1.5V volt supply outputs. With YES DMA channels, Microcontroller chip can handle large data transfers. Using the base part number PC5534, you will be able to find alternatives for the part. Devices work in YES PWM channels. As far as its frequency goes, it operates according to a 20MHz clock.

SPC5534MVM80 Features

208-BGA package
Mounting type of Surface Mount
Microcontrollers subcategory

SPC5534MVM80 Applications

There are a lot of NXP USA Inc.
SPC5534MVM80 Microcontroller applications.

Instrument control
Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
