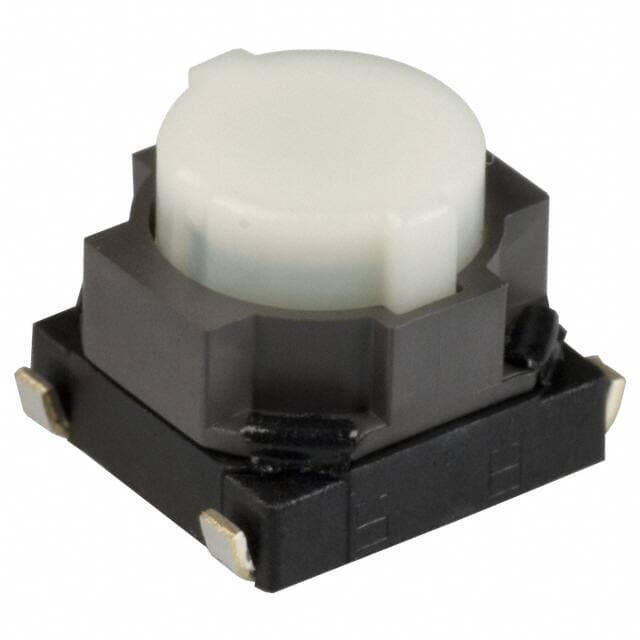

PANASONIC EVQ-P1D05M
Manufacturer No:
EVQ-P1D05M
Manufacturer:
Package:
SMD/SMT
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EVQ-P1D05M information
PANASONIC EVQ-P1D05M technical specifications, attributes, parameters and parts with similar specifications to PANASONIC EVQ-P1D05M.
- Type
- Parameter
- Factory Lead Time
- 6 Weeks
- Contact Plating
- Gold, Silver
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- SMD/SMT
- Operating Temperature
- -40°C~85°C
- Packaging
- Tape & Reel (TR)
- Series
- EVQP1
- Published
- 2012
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- J-Bend
- ECCN Code
- EAR99
- Number of Positions
- 2
- Terminal Finish
- GOLD/SILVER
- HTS Code
- 8536.50.90.40
- Voltage - Rated DC
- 12V
- Packing Method
- BOX; TAPE AND REEL
- Orientation
- Straight
- Depth
- 7.4mm
- Current Rating
- 50mA
- Termination Style
- J Lead
- Circuit
- SPST-NO
- Switch Function
- Off-Mom
- Contact Resistance
- 100mOhm
- Contact Current(DC)-Max
- 0.05A
- Max Current Rating
- 50mA
- Electrical Life
- 100000 cycles
- Throw Configuration
- SPST
- Illumination
- Non-Illuminated
- Max Voltage Rating (DC)
- 12V
- Mechanical Life
- 100,000 Cycles
- Switch Type
- KEYPAD SWITCH
- Contact Current Rating
- 50mA
- Operating Force
- 250gf
- Illumination Type
- Illuminated, Non-Illuminated
- Actuator Orientation
- Top Actuated
- Outline
- 6.10mm x 6.00mm
- Contact Rating @ Voltage
- 0.05A @ 12VDC
- Switch Travel
- 1.30mm
- Actuator Height off PCB, Vertical
- 5.00mm
- Number of Switches
- 1
- Contact Bounce Time-Max
- 10ms
- Height
- 5mm
- Length
- 6mm
Download datasheets and manufacturer documentation for PANASONIC EVQ-P1D05M.
