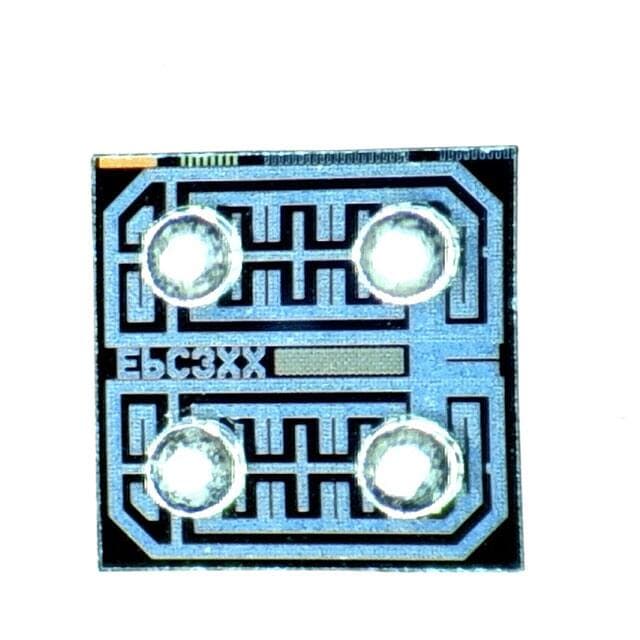

ESPROS Photonics AG EPC300-CSP4-001

Manufacturer No:

EPC300-CSP4-001

Manufacturer:

ESPROS Photonics AG

Package:

4-XFBGA, CSPBGA

Description:

Surface Mount -40°C~85°C Tape & Reel (TR) Wavelength: 850nm 4-XFBGA, CSPBGA 20V 0.86mm2 300ns

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EPC300-CSP4-001 information

ESPROS Photonics AG EPC300-CSP4-001 technical specifications, attributes, parameters and parts with similar specifications to ESPROS Photonics AG EPC300-CSP4-001.

Type
Parameter

Factory Lead Time
2 Weeks

Mounting Type
Surface Mount

Package / Case
4-XFBGA, CSPBGA

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Viewing Angle
150°

Response Time
300ns

Voltage - DC Reverse (Vr) (Max)
20V

Wavelength
850nm

Spectral Range
400nm ~ 1030nm

Active Area
0.86mm2

Current - Dark (Typ)
80pA

Color - Enhanced
Infrared (NIR)/Red

Responsivity @ nm
0.6 A/W @ 850nm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ESPROS Photonics AG EPC300-CSP4-001.

EPC300-CSP4-001 Overview

In order to prevent damage, these photodiodes are packaged in the Tape & Reel (TR). It is necessary to enclose the photodiodes in 4-XFBGA, CSPBGA packages for safety purposes. As long as the photodiodes are operated in reverse- bias mode continuously, their maximum voltage is 20V.

EPC300-CSP4-001 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~85°C
Packaging: Tape & Reel (TR)
Spectral Range: 400nm ~ 1030nm
Response Time: 300ns
Viewing Angle: 150°
Responsivity @ nm: 0.6 A/W @ 850nm

EPC300-CSP4-001 Applications

There are a lot of ESPROS Photonics AG
EPC300-CSP4-001 Photodiodes applications.

Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
Pure UV-C Monitoring
