EP4SGX530KH40C4ES Information

INTEL EP4SGX530KH40C4ES technical specifications, attributes, parameters and parts with similar specifications to INTEL EP4SGX530KH40C4ES.

Type
Parameter

Mount
Surface Mount

Package / Case
FCBGA

Published
2008

JESD-609 Code
e0

Pbfree Code
no

Number of Terminations
1517

ECCN Code
3A001.A.7.A

Terminal Finish
TIN LEAD

Max Operating Temperature
85°C

Min Operating Temperature
0°C

Type
Parameter

HTS Code
8542.39.00.01

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
220

Supply Voltage
0.9V

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
1517

JESD-30 Code
S-PBGA-B

Qualification Status
Not Qualified

Download datasheets and manufacturer documentation for INTEL EP4SGX530KH40C4ES.

Datasheets:

altera-ep4sgx530kh40c4es-datasheets-8862.pdf

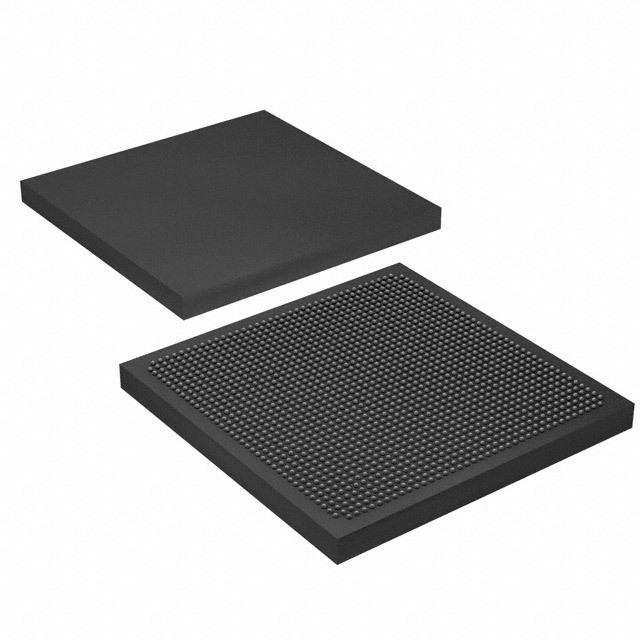

EP4SGX530KH40C4ES Overview

In the FCBGA package, you will find fpga chips. An FPGA of this type is made up of FIELD PROGRAMMABLE GATE ARRAY gates. The device has 744 I/O ports for more coherent data transfer. To form a fundamental building block, there are 531200 logic elements/cells. In order to operate fpga chips, a voltage supply of 0.9V volts is required. 1517 terminations are present in total. It is crucial that the RAM si3.3MBe of this FPGA module reaches 3.3MB so that the program can run normally. In order for this FPGA to work properly in accordance with its specifications, it is necessary that it is mounted in Surface Mount. As a result of the design of this module, the maximum operating temperature reaches 85°C. There should be a temperature difference between 0°C and the operating temperature. With a total of 1517 pins, it is equipped with a high level of security. A basic building block of this system consists of 21248 logic blocks (LABs). It usually uses a 717MHz crystal. For this FPGA to function properly, the supply voltage must be greater than 0.87V.

EP4SGX530KH40C4ES Features

744 I/Os
85°C gates
21248 logic blocks (LABs)

EP4SGX530KH40C4ES Applications

There are a lot of Altera
EP4SGX530KH40C4ES FPGAs applications.

Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense

EP4SGX530KH40C4ES Relevant information
