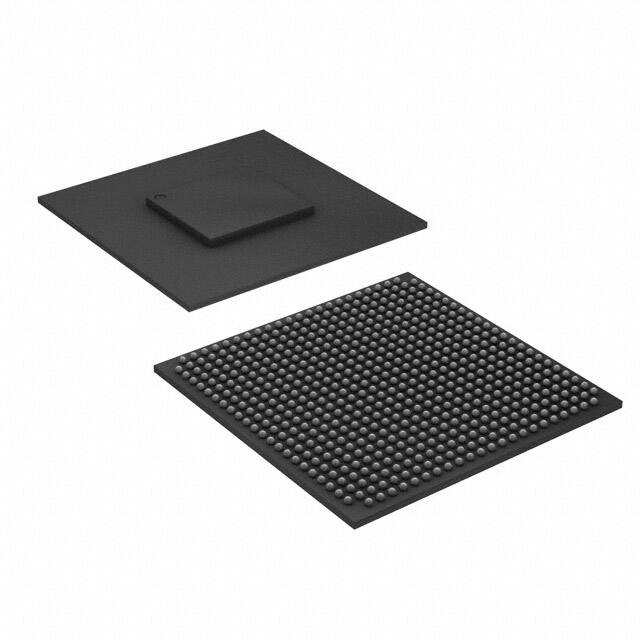

INTEL EP2AGX45DF25I3N
INTEL EP2AGX45DF25I3N

INTEL EP2AGX45DF25I3N

Manufacturer No:

EP2AGX45DF25I3N

Manufacturer:

INTEL

Package:

572-BGA, FCBGA

Description:

2.2mm mm FPGAs Arria II GX Series 572-BGA, FCBGA 1mm mm 572

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EP2AGX45DF25I3N information

INTEL EP2AGX45DF25I3N technical specifications, attributes, parameters and parts with similar specifications to INTEL EP2AGX45DF25I3N.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 572-BGA, FCBGA
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~100°C TJ
  • Packaging
  • Tray
  • Series
  • Arria II GX
  • JESD-609 Code
  • e1
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 572
  • ECCN Code
  • 3A991
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • HTS Code
  • 8542.39.00.01
  • Voltage - Supply
  • 0.87V~0.93V
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Supply Voltage
  • 0.9V
  • Terminal Pitch
  • 1mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • EP2AGX45
  • JESD-30 Code
  • S-PBGA-B572
  • Number of I/O
  • 252
  • Clock Frequency
  • 500MHz
  • Number of Logic Elements/Cells
  • 42959
  • Total RAM Bits
  • 3517440
  • Number of LABs/CLBs
  • 1805
  • Length
  • 25mm
  • Height Seated (Max)
  • 2.2mm
  • Width
  • 25mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INTEL EP2AGX45DF25I3N.

Datasheets:

PCN Packaging:

EP2AGX45DF25I3N Overview


As part of the 572-BGA, FCBGA package, it is included. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. A total of 252 I/Os allow data to be transferred in a more coherent manner. A fundamental building block consists of 42959 logic elements/cells. It is powered from a supply voltage of 0.9V. With a Surface Mount connector, this FPGA module can be attached to the development board. In order to operate it, it requires a voltage supply of 0.87V~0.93V . It is a type of FPGA that belongs to the Arria II GX series of FPGAs. Fpga chips is important to maintain the operating temperature wFpga chipshin the range of -40°C~100°C TJ when operating the machine. In order to save space, this FPGA model has been contained in Tray. There are a total of 572 terminations. This device has 3517440 RAM bits, which is the number of RAM bits that this device offers. Its base part number EP2AGX45 can be used to find parts that are related to it. The FPGA consists of 1805 LABs/CLBs. Typically, it uses a crystal oscillating at 500MHz in order to operate.

EP2AGX45DF25I3N Features


252 I/Os
Up to 3517440 RAM bits


EP2AGX45DF25I3N Applications


There are a lot of Intel
EP2AGX45DF25I3N FPGAs applications.


  • Bioinformatics
  • Device controllers
  • Software-defined radio
  • Random logic
  • ASIC prototyping
  • Medical imaging
  • Computer hardware emulation
  • Integrating multiple SPLDs
  • Voice recognition
  • Cryptography
