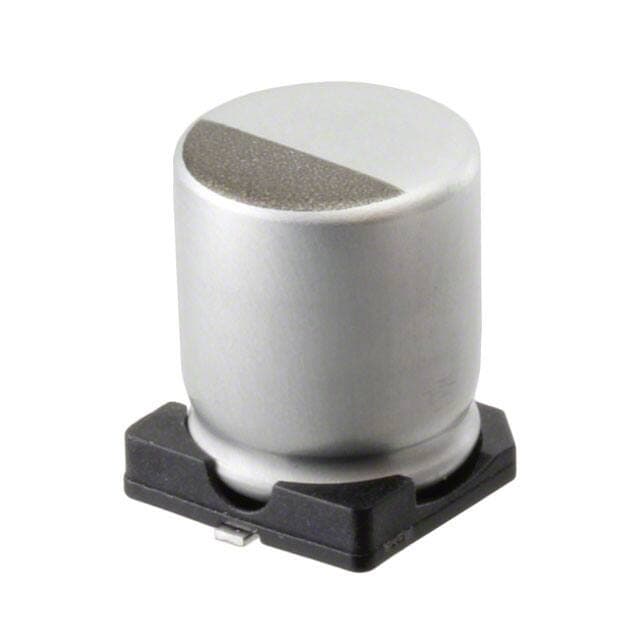

United Chemi-Con EMHB350ADA221MJA0G

Manufacturer No:

EMHB350ADA221MJA0G

Manufacturer:

United Chemi-Con

Package:

Radial, Can - SMD

Description:

Alchip?- MHB 220?F Capacitor ±20% Tape & Reel (TR) Surface Mount 330mA 0.394Dia 10.00mm -40°C~125°C Polar Radial, Can - SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EMHB350ADA221MJA0G information

United Chemi-Con EMHB350ADA221MJA0G technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EMHB350ADA221MJA0G.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Surface Mount Land Size
0.406Lx0.406W 10.30mmx10.30mm

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Series
Alchip?- MHB

Published
2006

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMD/SMT

Applications
Automotive

Capacitance
220?F

Voltage - Rated DC
35V

ESR (Equivalent Series Resistance)
200mOhm @ 400kHz

Lifetime @ Temp
2000 Hrs @ 125°C

Ripple Current
330mA

Polarization
Polar

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
306.9mA @ 120Hz

Ripple Current (AC)
330mA

Diameter
10mm

Height
10mm

Height Seated (Max)
0.413 10.50mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con EMHB350ADA221MJA0G.

Datasheets:

unitedchemicon-emhb250ada221mha0g-datasheets-3632.pdf

unitedchemicon-emhb350ada221mja0g-datasheets-2789.pdf

EMHB350ADA221MJA0G Overview

Ripple current at full charge is 330mA @ 100kHz.For 200mOhm @ 400kHz to fully function, the equivalent series resistance has to be provided.It is 306.9mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.413 10.50mm.Voltage - Rated DC - is 35V.It is recommended that the operating temperature be kept at -40°C~125°C to achieve high efficiency.

EMHB350ADA221MJA0G Features

the ripple current is 330mA @ 100kHz.
the ripple current is 306.9mA @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -40°C~125°C

EMHB350ADA221MJA0G Applications

There are a lot of United Chemi-Con
EMHB350ADA221MJA0G applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
