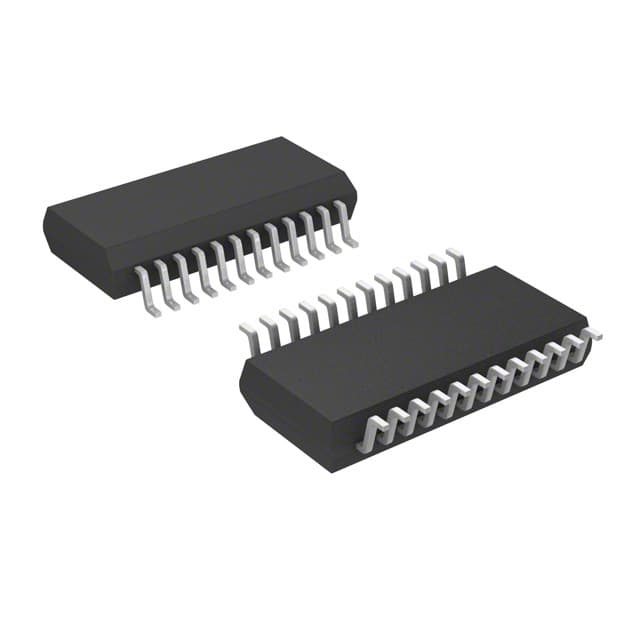

Microchip EMC6D103S-CZC-TR
Manufacturer No:
EMC6D103S-CZC-TR
Manufacturer:
Package:
24-SSOP (0.154, 3.90mm Width)
Description:
24-SSOP (0.154, 3.90mm Width) Thermal Management 3.3V V 8.74mm mm
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EMC6D103S-CZC-TR information
Microchip EMC6D103S-CZC-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip EMC6D103S-CZC-TR.
- Type
- Parameter
- Factory Lead Time
- 17 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 24-SSOP (0.154, 3.90mm Width)
- Number of Pins
- 24
- Operating Temperature
- 0°C~70°C
- Packaging
- Tape & Reel (TR)
- Published
- 2007
- JESD-609 Code
- e3
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 2 (1 Year)
- Number of Terminations
- 24
- Terminal Finish
- Matte Tin (Sn) - annealed
- HTS Code
- 8542.39.00.01
- Subcategory
- Motion Control Electronics
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Supply Voltage
- 3.3V
- Terminal Pitch
- 0.635mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- EMC6D103S
- Function
- Fan Control, Temp Monitor
- Output Type
- SMBus
- Interface
- 2-Wire, I2C, SMBus
- Analog IC - Other Type
- ANALOG CIRCUIT
- Operating Supply Current
- 3mA
- Accuracy
- ±3°C Local(Max), ±5°C Remote(Max)
- Topology
- ADC (Sigma Delta), Multiplexer, Register Bank
- Sensor Type
- Internal and External
- Max Supply Voltage (DC)
- 12V
- Min Supply Voltage (DC)
- 2.5V
- Output Alarm
- Yes
- Sensing Temperature
- 0°C~70°C -40°C~125°C
- Height
- 1.55mm
- Length
- 8.74mm
- Width
- 3.99mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Microchip EMC6D103S-CZC-TR.
PCN Packaging:
ConflictMineralStatement:
EMC6D103S-CZC-TR Overview
As per Tape & Reel (TR)'s specifications, packaged.Its output type is SMBus.24-SSOP (0.154, 3.90mm Width) package costs are well known to those in the electronic industry.The object can act as Fan Control, Temp Monitor.An array of devices can be mounted with Surface Mount.Adding Type Internal and External to it gives it a unique identity.A reliable operation requires a temperature of 0°C~70°C.Using a thermometer, it is possible to determine the sensing temperature of 0°C~70°C -40°C~125°C.This EMC6D103S part number identifies its Type, regardless of its package, temperature, or other variants.In addition, it has 24 pins.Terminations in 24 are found.In this case, it operates on 3.3V as its supply voltage.This analog IC type uses ANALOG CIRCUIT.With a typical range for 260, the peak reflow temperature can be determined.It can be classified under the subcategory Motion Control Electronics.During operation, it receives 3.3V voltage.Thermal management runs on 3mA current.12V is its maximum Supply Voltage (DC).2.5V is the minimum supply voltage (DC) it can operate at.
EMC6D103S-CZC-TR Features
Available in the 24-SSOP (0.154, 3.90mm Width) package
ANALOG CIRCUIT as analog IC type
Peak reflow temperature (Cel) of 260
Operating supply voltage of 3.3V
Operating supply current of 3mA
EMC6D103S-CZC-TR Applications
There are a lot of Microchip Technology
EMC6D103S-CZC-TR applications of thermal management.
- Networking
- Telecommunications
- Desktop Computers
- Notebook Computers
- Projectors
- Networking Equipment
- Network Servers and Personal Computers
- Telecommunications Equipment
- Test Equipment Instruments
- Low Acoustic Noise PCs
