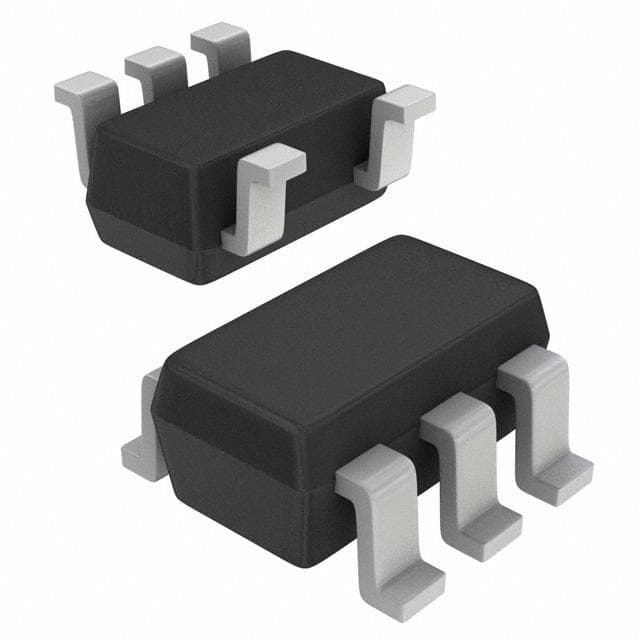

Renesas EL8103IWZ-T7A

Manufacturer No:

EL8103IWZ-T7A

Manufacturer:

Renesas

Package:

SOT-23

Description:

1 Channels 65mA per Channel 6μA 70 dB Instrumentational OP Amps 5 Pins SOT-23

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL8103IWZ-T7A information

Renesas EL8103IWZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas EL8103IWZ-T7A.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-23

Number of Pins
5

Packaging
Cut Tape

Published
2002

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
5

Number of Elements
1

Temperature Grade
INDUSTRIAL

Number of Channels
1

Max Supply Voltage
5V

Operating Supply Current
5.6mA

Nominal Supply Current
6mA

Slew Rate
600 V/μs

Common Mode Rejection Ratio
70 dB

Current - Input Bias
6μA

Output Current per Channel
65mA

Input Offset Voltage (Vos)
800μV

Bandwidth
500000 kHz

Gain Bandwidth Product
200MHz

Voltage Gain
90dB

Power Supply Rejection Ratio (PSRR)
70dB

Max Dual Supply Voltage
2.5V

-3db Bandwidth
500MHz

Min Dual Supply Voltage
1.5V

Consumer IC Type
VIDEO AMPLIFIER

Length
2.9mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL8103IWZ-T7A.

EL8103IWZ-T7A Overview

In the package, you will find a SOT-23-case to contain the op amp ic. A Cut Tape case is used for delivering the op amp. During the past two weeks, there have been close to 5 terminations. A total of 5 pins are located on this board. The op amp ic has an array of 5 pins on it. Op amp rates 800μV as input offset voltage. Using an 5.6mA supply current, this operational amplifier ics can be operated. You should keep the voltage gain at 90dB for the time being. On the buffer amps, there are 1 channels that can be used. To operate this buffer amplifier, the temperature must not be lower than -40°C. A temperature greater than 85°C should not be used for the operation of buffer amplifier. 1 elements make up the design of this buffer amplifier. This electric component can work from a voltage of under 5V as far as supply voltage is concerned. A voltage of 3V or higher is recommended for the linear amplifier's supply voltage. This electrical part should be conducted under the dual supply voltage of 2.5V volts when you conduct this part. Using the VIDEO AMPLIFIER column, it is possible to sort by the consumer IC type of the electronic ic chip.

EL8103IWZ-T7A Features

5 Pins
90dB voltage gain

EL8103IWZ-T7A Applications

There are a lot of Intersil (Renesas Electronics America)
EL8103IWZ-T7A Instrumentational OP Amps applications.

Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video computer boards
