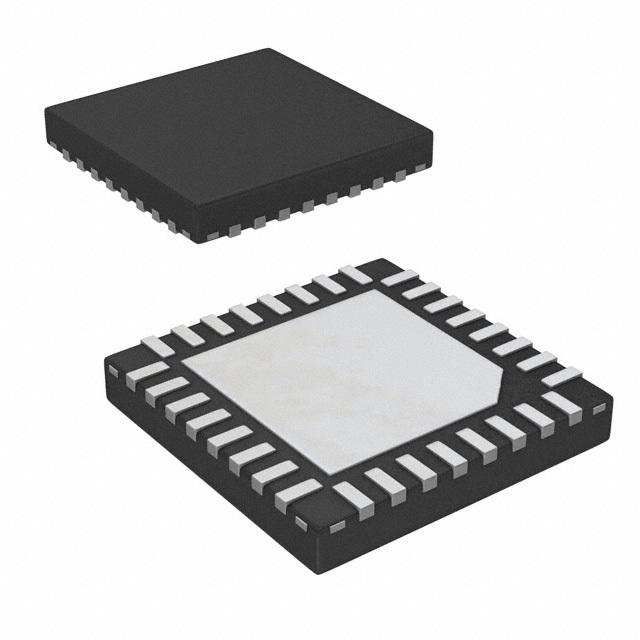

Renesas EL7642ILTZ-T13

Manufacturer No:

EL7642ILTZ-T13

Manufacturer:

Renesas

Package:

Description:

3/5V PMIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL7642ILTZ-T13 information

Renesas EL7642ILTZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL7642ILTZ-T13.

Type
Parameter

Mount
Surface Mount

Number of Pins
32

Packaging
Tape & Reel (TR)

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Power Management Circuits

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

Number of Outputs
1

Qualification Status
Not Qualified

Operating Supply Voltage
5.5V

Input Voltage-Nom
3V

Temperature Grade
INDUSTRIAL

Analog IC - Other Type
SWITCHING REGULATOR

Current - Output
50mA

Voltage - Output
20V

Input Voltage (Min)
2.6V

Control Mode
CURRENT-MODE

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
BOOST

Height Seated (Max)
0.8mm

Width
5mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL7642ILTZ-T13.

Datasheets:

intersil-el7642iltzt13-datasheets-0652.pdf

EL7642ILTZ-T13 Overview

The reference voltage is enclosed in the Tape & Reel (TR) external packaging.32 terminations with various functions.SWITCHING REGULATOR analog IC is coupled with the reference voltage.It is sufficient to generate 1 outputs. The voltage reference ic includes 32 pins.Reflow soldering should be performed at a temperature of 260.32 pins are settled in the voltage reference ic.As a type of Power Management Circuits, the voltage reference circuit is used in various applications.It is suitable for 50mA input applications.It is appropriate for Surface Mount applications.It should operate with ambient temperature 85°C higher than 85°C.It can operate at temperatures as low as -40°C degrees Celsius.Outputs 20V voltage.Does the voltage reference ic contain Substances of Very High Concern (SVHC)? The answer is No SVHC.It is advised to utilize a 3/5V power supply.

EL7642ILTZ-T13 Features

SWITCHING REGULATOR Analog IC
Peak Reflow Temperature: 260

EL7642ILTZ-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL7642ILTZ-T13 Voltage Reference applications.

Portable, battery-powered equipment
Cellular phones, notebook computers, PDAs, GPSs, and DMMs
Computer workstations
Suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
