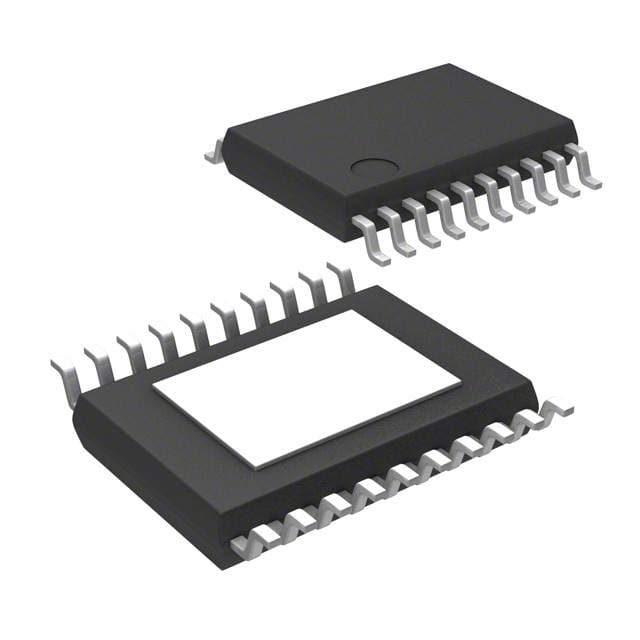

Renesas EL7581IREZ-T7

Manufacturer No:

EL7581IREZ-T7

Manufacturer:

Renesas

Package:

Description:

17V 260 Cel DUAL Specialized Voltage Regulator 20 Pins 20 Terminations

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL7581IREZ-T7 information

Renesas EL7581IREZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL7581IREZ-T7.

Type
Parameter

Mount
Surface Mount

Number of Pins
20

Published
2002

JESD-609 Code
e3

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
20

Number of Outputs
1

Efficiency
90 %

Max Output Current
720mA

Operating Supply Voltage
14V

Input Voltage-Nom
3.3V

Temperature Grade
INDUSTRIAL

Current - Output
720mA

Voltage - Output
17V

Topology
Boost

Min Input Voltage
2.7V

Control Mode
VOLTAGE-MODE

Frequency - Switching
750kHz

Max Input Voltage
14V

Control Technique
PULSE WIDTH MODULATION

Height
900?m

Length
5mm

Width
4.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL7581IREZ-T7.

Datasheets:

intersil-el7581irezt7-datasheets-9797.pdf

EL7581IREZ-T7 Overview

As a whole, it supports 1 outputs. There is a general voltage output of 17V from this power supply regulator. The voltage regulator contains 20terminals. The electronic part is widely regarded as a regulator of type SWITCHING REGULATOR. Assuming that the rectifier regulator has 20 pins, the pinout begins from there. In order to mount it on PCBs or other boards, it has a Surface Mount. The power regulators with 20 pins are available. There are other Switching Regulator or Controllersin the industry, such as the voltage controller, which play an important role. It cannot be operated at a temperature below -40°C. The temperature should not exceed 85°C. For normal operation, a voltage of 14V is required. It is required that the input voltage be higher than 2.7V. At its maximum output, voltage regulator produces current 720mA. Voltage regulators with 750kHzswitching frequencies are available.

EL7581IREZ-T7 Features

SWITCHING REGULATOR analog IC
Supply voltage: 14V
Switching at 750kHz

EL7581IREZ-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
EL7581IREZ-T7 Specialized Voltage Regulators applications.

Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
