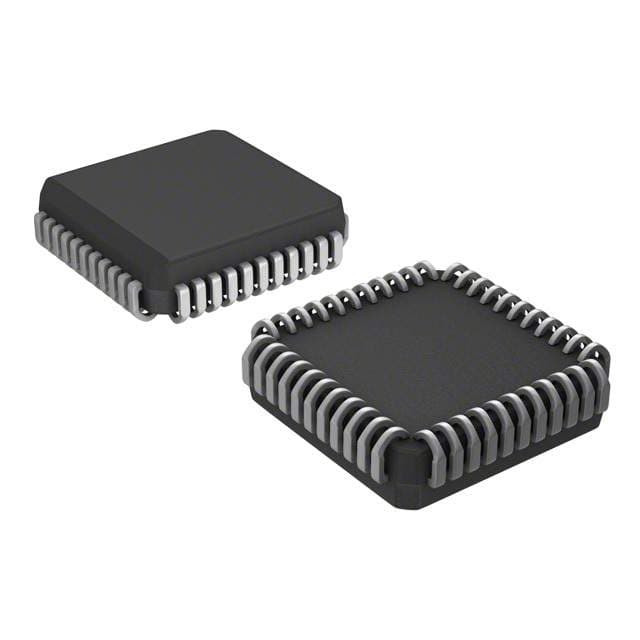

Renesas CS82C37AZ

Manufacturer No:

CS82C37AZ

Manufacturer:

Renesas

Package:

PLCC

Description:

1.27mm 5V Specialized Interface IC 44 Pin 5V PLCC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CS82C37AZ information

Renesas CS82C37AZ technical specifications, attributes, parameters and parts with similar specifications to Renesas CS82C37AZ.

Type
Parameter

Mount
Surface Mount

Package / Case
PLCC

Number of Pins
44

Published
1996

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.31.00.01

Subcategory
DMA Controllers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
J BEND

Supply Voltage
5V

Terminal Pitch
1.27mm

Pin Count
44

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
4.5V

Clock Frequency
8MHz

Address Bus Width
8

External Data Bus Width
8

Bus Compatibility
80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800

Number of DMA Channels
4

Length
16.585mm

Height Seated (Max)
4.57mm

Width
16.585mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas CS82C37AZ.

Datasheets:

intersil-cs82c37az-datasheets-7529.pdf

CS82C37AZ Overview

This fits well into the PLCC package.In total, there are 44 terminations.It is important to remember that this device should be set to 5V.It contains a total of 44 pins.In order for the operation to be performed, the 44 pins must be connected.Currently, Surface Mount is mounting it.The unit operates at a minimum working temperature of 0°C in order to ensure reliable operation.By setting the value of 70°C to the maximum, this ensures that the part will run consistently.In this case, the electronic components are from the DMA Controllers family.In this device, there is DMA CONTROLLER uPs/uCs/peripheral IC.As far as voltage delivery is concerned, it is capable of delivering voltage at 5V.Ideally, its output frequency should not exceed 8MHz.
