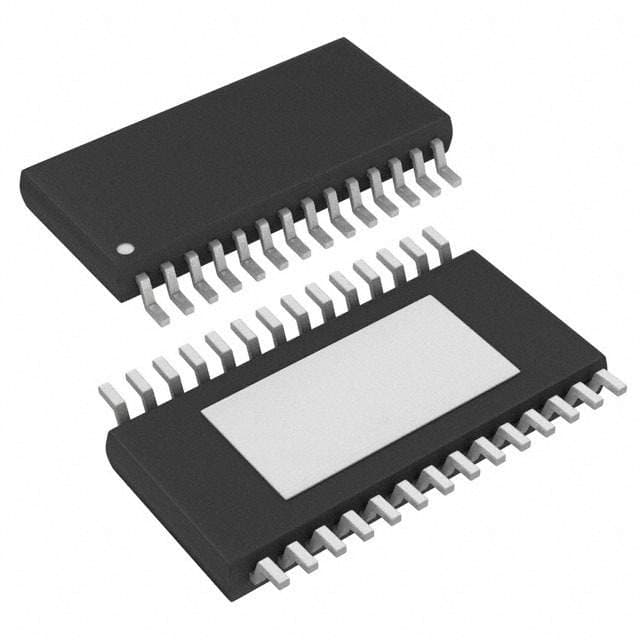

Renesas EL7554IRE-T7
Manufacturer No:
EL7554IRE-T7
Manufacturer:
Package:
Description:
28 Terminals DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 370kHz Tape & Reel (TR) 4A
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EL7554IRE-T7 information
Renesas EL7554IRE-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL7554IRE-T7.
- Type
- Parameter
- Mount
- Surface Mount
- Packaging
- Tape & Reel (TR)
- Published
- 2002
- JESD-609 Code
- e0
- Part Status
- Discontinued
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 28
- ECCN Code
- EAR99
- Terminal Finish
- Tin/Lead (Sn/Pb)
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Subcategory
- Switching Regulator or Controllers
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 240
- Number of Functions
- 1
- Terminal Pitch
- 0.65mm
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Pin Count
- 28
- JESD-30 Code
- R-PDSO-G28
- Number of Outputs
- 1
- Qualification Status
- Not Qualified
- Output Type
- Adjustable
- Input Voltage-Nom
- 3.3V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Current - Output
- 4A
- Voltage - Output
- 6V
- Input Voltage (Min)
- 3V
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 370kHz
- Input Voltage (Max)
- 6V
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- Yes
- Switcher Configuration
- BUCK
- Length
- 9.7mm
- Width
- 4.4mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for Renesas EL7554IRE-T7.
EL7554IRE-T7 Overview
Using the Tape & Reel (TR) package, this voltage regulator optimizes the performance of the voltage regulator 12v. A voltage regulator consists of 28 terminations. There is a SWITCHING REGULATOR type analog IC in this voltage regulator 12v that is used to convey analog signals. 1 outputs have been configured in the voltage regulator 12v. On its output pins, this adjusting voltage regulator generates Adjustable output. In this voltage regulator 12v, the switching frequency is 370kHz. DC DC switching regulator's maximum design flexibility comes from its output current of 4A. A regulator with this 240 peak reflow temperature is essentially indestructible. For operation, switching regulator requires a nominal input voltage of 3.3V. There is a subcategory of this regulator voltage called Switching Regulator or Controllers. Stable operation of switching regulator is possible because of the high operating temperature 85°C limit. The voltage regulator 12v must operate at a minimum operating temperature of -40°C in order to remain reliable. Input voltages with maximum values of DC DC switching regulator's 6V can be permitted using an innovative technique. It is possible to set the dc to dc voltage regulator's minimum input voltage to 3V with this voltage regulator dc to dc. A total of 28 pins are present on this voltage regulator dc to dc. 6V is the maximum voltage that DC DC switching regulator can output.
EL7554IRE-T7 Features
1 outputs
Peak reflow temperature (Cel) of 240
EL7554IRE-T7 Applications
There are a lot of Intersil (Renesas Electronics America)
EL7554IRE-T7 Voltage Regulators applications.
- Network technology
- Automation technology
- CMM
- Various precision measuring instruments
- Various precision measuring detectors
- Flaw detection equipment
- Balance equipment
- Industrial robots
- Industrial controllers
- Die casting equipment
