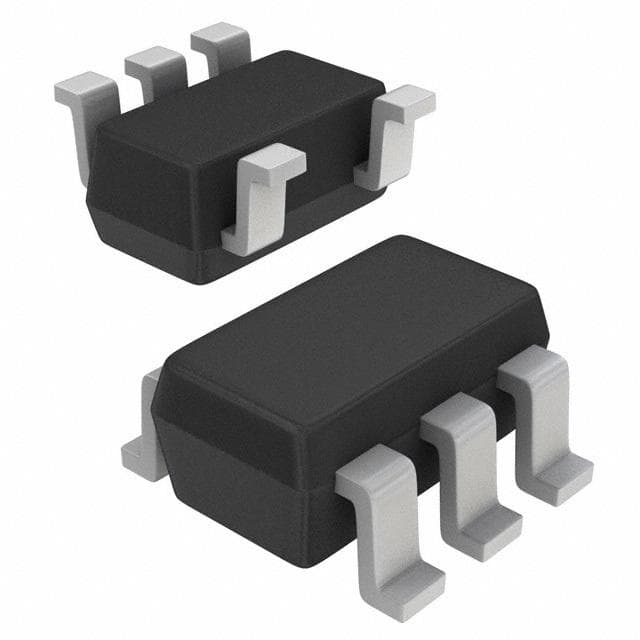

Renesas ISL84514IH-T

Manufacturer No:

ISL84514IH-T

Manufacturer:

Renesas

Package:

SOT-23-5

Description:

DUAL Analog Switches BREAK-BEFORE-MAKE 5 Pins 3.3V SOT-23-5

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL84514IH-T information

Renesas ISL84514IH-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL84514IH-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-23-5

Number of Pins
5

Packaging
Cut Tape

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Resistance
20Ohm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3.3V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
5

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Number of Channels
1

Max Supply Voltage
12V

Min Supply Voltage
2.4V

Operating Supply Current
1?A

Nominal Supply Current
100pA

Max Supply Current
1?A

Number of Bits
1

Throw Configuration
SPST

Turn On Delay Time
150 ns

Supply Type
Single

Turn-Off Delay Time
100 ns

Switching
BREAK-BEFORE-MAKE

Normal Position
NO

Length
2.9mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL84514IH-T.

ISL84514IH-T Overview

Shipping overseas is convenient with the electronic component packed in SOT-23-5. High reliability is provided by advanced packaging method Cut Tape. Total terminations are 5. High-quality output is provided by the electronic component's 1 channels. If the voltage supply is 3.3V volts, the electrical component should be turned on and run. The electronic part body is injected with 5 pins. There is 20Ohm internal resistance in this digital multiplexer. For functions related to 5 pins, please refer to the datasheets. Theswitch device is a typical Multiplexer or Switches. A voltage higher than 12V should not normally be supplied to the switches. Analogue multiplexers of the Single supply type that are cost-effective. 2.4V should be the lowest voltage fed to the electronic component. For this multiplexer to operate, 1?A current would be sufficient. The analogue multiplexer may be damaged if voltage is greater than 1?A. 9V operating voltages are supported by the electronic component. Temperatures above 85°C should not be used to operate the switches. It can conduct in a 1-bit manner.

ISL84514IH-T Features

1 Channels
1?A Supply Current
1-Bit

ISL84514IH-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL84514IH-T Analog Switches & Multiplexers ICs applications.

Transmit
Low-Voltage
Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
