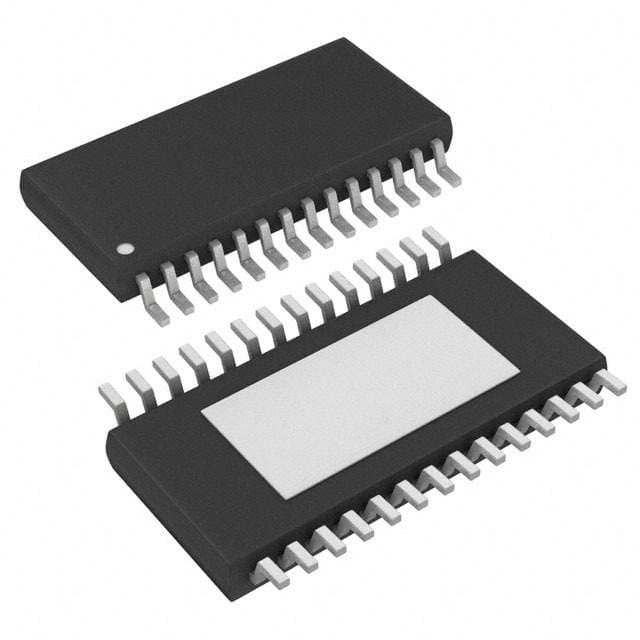

Renesas EL5824IREZ-T13

Manufacturer No:

EL5824IREZ-T13

Manufacturer:

Renesas

Package:

HTSSOP EP

Description:

10 Channels 140mA per Channel 50nA 45 dB Instrumentational OP Amps 0.05μA 8.25V 28 Pins HTSSOP EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5824IREZ-T13 information

Renesas EL5824IREZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5824IREZ-T13.

Type
Parameter

Mount
Surface Mount

Package / Case
HTSSOP EP

Published
2003

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.33.00.01

Subcategory
Buffer Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
10

Supply Voltage
15V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
28

JESD-30 Code
R-PDSO-G28

Qualification Status
Not Qualified

Operating Supply Voltage
8.25V

Number of Channels
10

Operating Supply Current
9.5mA

Nominal Supply Current
12.5mA

Current - Output
30mA

Slew Rate
15 V/μs

Amplifier Type
BUFFER

Common Mode Rejection Ratio
45 dB

Current - Input Bias
50nA

Output Current per Channel
140mA

Input Offset Voltage (Vos)
14mV

Gain Bandwidth Product
8MHz

Voltage Gain
0.069dB

Average Bias Current-Max (IIB)
0.05μA

-3db Bandwidth
12MHz

Min Dual Supply Voltage
2.25V

Length
9.7mm

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5824IREZ-T13.

Datasheets:

intersil-el5824irezt13-datasheets-7604.pdf

EL5824IREZ-T13 Overview

Packaging for the buffer amplifier is in the form of a HTSSOP EP case. A BUFFER-type buffer amplifier is shown here. A total of 28 terminations have been reported in the past few weeks. Buffer amplifier has a total of 28 pins on it. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 15V. In more specific terms, this linear amplifier can be categoriBuffer Amplifiered as a Buffer Amplifier-type device. With regards to the offset voltage of the input, buffer amplifier is rated at 14mV. Using a supply current of 9.5mA , this buffer op amp will be able to operate. Keeping the voltage gain at 0.069dB is the best course of action. 10 channels are available on the instrumentation amplifier. This op amp needs to be operated at a temperature of not less than -40°C degrees Celsius in order to function properly. You should not use op amp above 85°C degrees. The operating supply voltage of the buffer op amp is rated at 8.25V.

EL5824IREZ-T13 Features

28 Pins
supply voltage of 15V
0.069dB voltage gain

EL5824IREZ-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5824IREZ-T13 Instrumentational OP Amps applications.

single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
