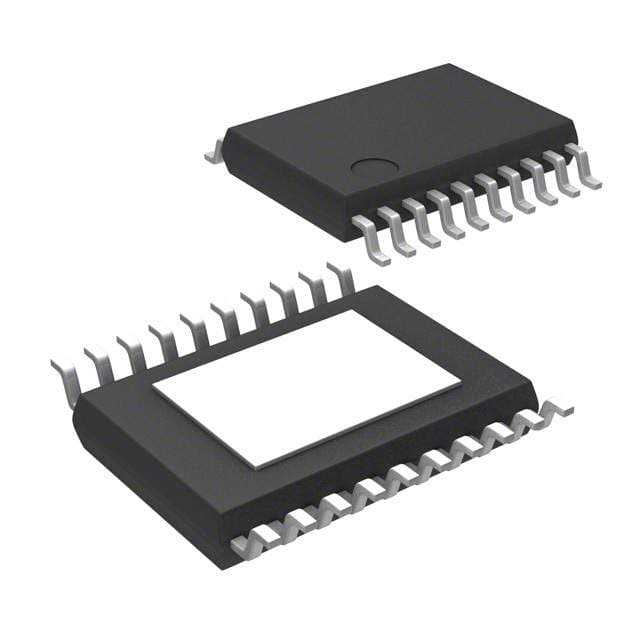

Renesas EL5624IREZ

Manufacturer No:

EL5624IREZ

Manufacturer:

Renesas

Package:

HTSSOP EP

Description:

6 Channels 140mA per Channel 50nA 45 dB Instrumentational OP Amps 0.05μA 8.25V 20 Pins HTSSOP EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5624IREZ information

Renesas EL5624IREZ technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5624IREZ.

Type
Parameter

Mount
Surface Mount

Package / Case
HTSSOP EP

Published
2003

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.33.00.01

Subcategory
Buffer Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
6

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
20

JESD-30 Code
R-PDSO-G20

Qualification Status
Not Qualified

Operating Supply Voltage
8.25V

Temperature Grade
INDUSTRIAL

Operating Supply Current
6.8mA

Nominal Supply Current
8.5mA

Current - Output
30mA

Slew Rate
15 V/μs

Amplifier Type
BUFFER

Common Mode Rejection Ratio
45 dB

Current - Input Bias
50nA

Output Current per Channel
140mA

Input Offset Voltage (Vos)
14mV

Gain Bandwidth Product
8MHz

Voltage Gain
0.069dB

Average Bias Current-Max (IIB)
0.05μA

-3db Bandwidth
12MHz

Min Dual Supply Voltage
2.25V

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5624IREZ.

EL5624IREZ Overview

In the package, you will find a HTSSOP EP-case to contain the op amp ic. The instrumentation amplifier in this picture is of the BUFFER-type. During the past two weeks, there have been close to 20 terminations. A total of 20 pins are located on this board. This linear amplifier should be powered by an 15V battery. This particular linear amplifier is a type of Buffer Amplifier device, to be precise. Op amp rates 14mV as input offset voltage. Using an 6.8mA supply current, this operational amplifier ics can be operated. You should keep the voltage gain at 0.069dB for the time being. On the buffer amps, there are 6 channels that can be used. To operate this buffer amplifier, the temperature must not be lower than -40°C. A temperature greater than 85°C should not be used for the operation of buffer amplifier. The operating supply voltage of the buffer op amp is rated at 8.25V.

EL5624IREZ Features

20 Pins
supply voltage of 15V
0.069dB voltage gain

EL5624IREZ Applications

There are a lot of Intersil (Renesas Electronics America)
EL5624IREZ Instrumentational OP Amps applications.

Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video computer boards
