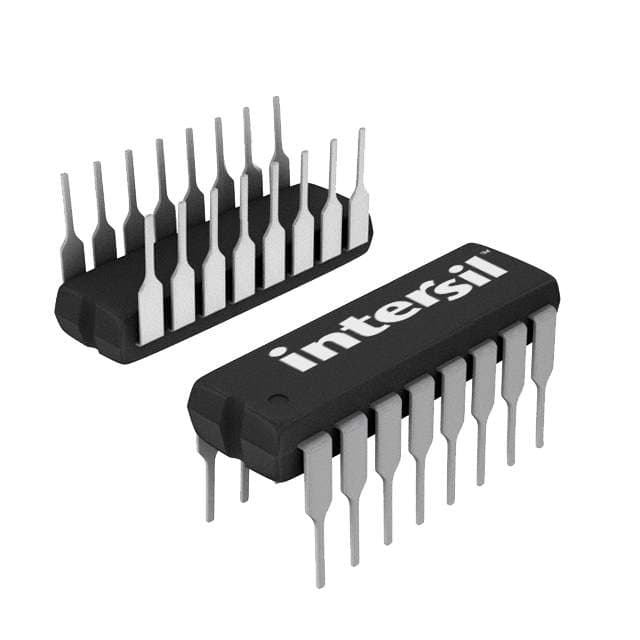

Renesas HI1-0548-5

Manufacturer No:

HI1-0548-5

Manufacturer:

Renesas

Package:

CDIP

Description:

Analog Switches BREAK-BEFORE-MAKE 16 Pins 15V CDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HI1-0548-5 information

Renesas HI1-0548-5 technical specifications, attributes, parameters and parts with similar specifications to Renesas HI1-0548-5.

Type
Parameter

Mount
Through Hole

Package / Case
CDIP

Packaging
Bulk

Published
1999

JESD-609 Code
e0

Part Status
Discontinued

Number of Terminations
16

Resistance
1.8kOhm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
75°C

Min Operating Temperature
0°C

Additional Feature
OVERVOLTAGE PROTECTION

HTS Code
8542.39.00.01

Technology
CMOS

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Qualification Status
Not Qualified

Power Supplies
+-15V

Temperature Grade
COMMERCIAL EXTENDED

Operating Supply Current
500?A

Logic Function
Multiplexer

Supply Type
Dual

Supply Current-Max (Isup)
2mA

Neg Supply Voltage-Nom (Vsup)
-15V

Off-state Isolation-Nom
68 dB

On-state Resistance Match-Nom
126Ohm

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
1000ns

Switch-off Time-Max
1000ns

Signal Current-Max
0.02A

Height Seated (Max)
5.08mm

Width
7.62mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HI1-0548-5.

Datasheets:

intersil-hi105485-datasheets-6157.pdf

HI1-0548-5 Overview

Due to its CDIP packaging, the electronic part is convenient for international shipping. High reliability is achieved by using advanced packaging method Bulk. A total of 16 terminations have been recorded. The electronic part delivers high-quality output through its 8 channels. Turning on and running the electrical part should be easy with a 15V voltage supply. Electronic part bodies are injected with 16 pins. Internally, this switch multiplexer has a resistance of 1.8kOhm. Digital switch that provides Dual power at a cost-effective price. The switch device would be able to operate with 500?A current. Additional features include: OVERVOLTAGE PROTECTION. Temperatures over 75°C should not be allowed for the multiplexer to operate.

HI1-0548-5 Features

8 Channels
500?A Supply Current
Additional Features: OVERVOLTAGE PROTECTION

HI1-0548-5 Applications

There are a lot of Intersil (Renesas Electronics America)
HI1-0548-5 Analog Switches & Multiplexers ICs applications.
