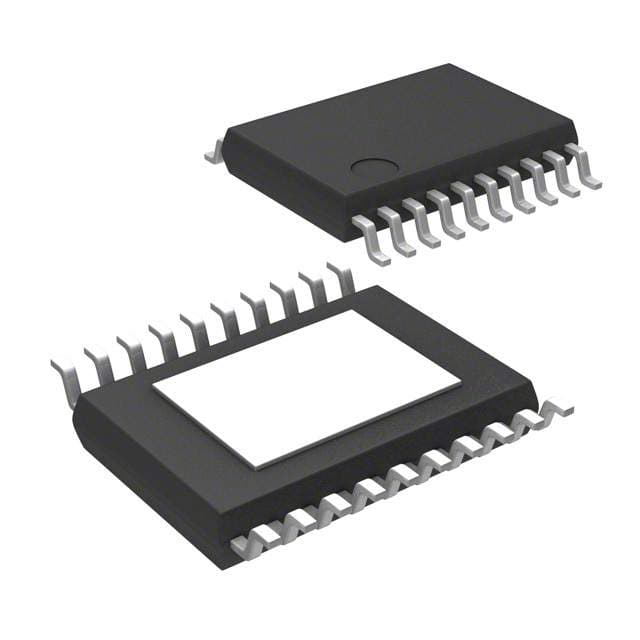

Renesas EL5624AIREZ

Manufacturer No:

EL5624AIREZ

Manufacturer:

Renesas

Package:

HTSSOP EP

Description:

6 Channels 140mA per Channel 50nA Instrumentational OP Amps 0.05μA 20 Pins HTSSOP EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5624AIREZ information

Renesas EL5624AIREZ technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5624AIREZ.

Type
Parameter

Mount
Surface Mount

Package / Case
HTSSOP EP

Published
2004

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.33.00.01

Subcategory
Buffer Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
6

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
20

JESD-30 Code
R-PDSO-G20

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Number of Channels
6

Min Supply Voltage
5V

Operating Supply Current
8.5mA

Nominal Supply Current
10mA

Slew Rate
15 V/μs

Amplifier Type
BUFFER

Current - Input Bias
50nA

Output Current per Channel
140mA

Input Offset Voltage (Vos)
15V

Average Bias Current-Max (IIB)
0.05μA

Power Supply Rejection Ratio (PSRR)
55dB

-3db Bandwidth
12MHz

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5624AIREZ.

EL5624AIREZ Overview

The linear amplifier is packaged in a HTSSOP EP case. This is a BUFFER type op amp. The number of terminations approaches 20. Buffer amplifier has a total of 20 pins. Please take in mind that this instrumentation amplifier should be run at 15V. To be specific, this instrumentation amplifier is a type of Buffer Amplifier. Regarding input offset voltage, op amp rates 15V. This op amp can operate from a supply current at 8.5mA. The op amp ic has 6 channels on it. The temperature should not be lower than -40°C for operational amplifier ics to operate. Use op amps only at temperatures no higher than 85°C. With regard to the supply voltage, this electrical component is capable of working from under 15V. It is advised to keep the op amp's supply voltage higher than 5V.

EL5624AIREZ Features

20 Pins
supply voltage of 15V

EL5624AIREZ Applications

There are a lot of Intersil (Renesas Electronics America)
EL5624AIREZ Instrumentational OP Amps applications.

Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
