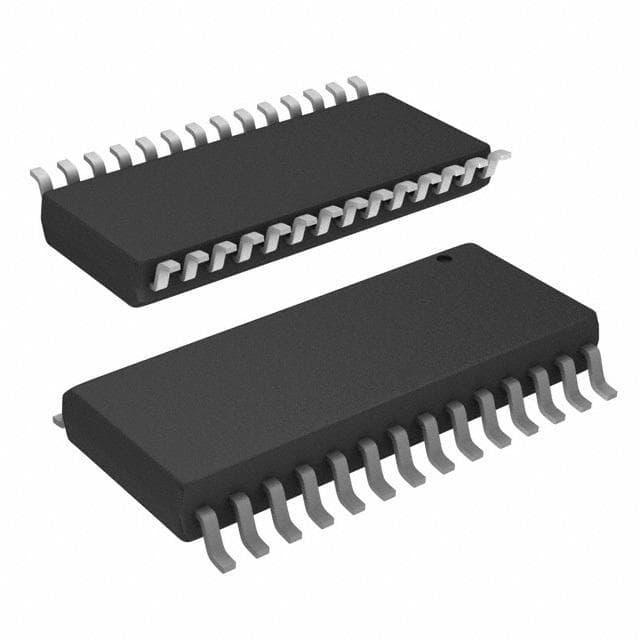

Renesas ICL3238CA-T

Manufacturer No:

ICL3238CA-T

Manufacturer:

Renesas

Package:

SSOP

Description:

28 Terminations Receivers 5 Bits 5 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ICL3238CA-T information

Renesas ICL3238CA-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ICL3238CA-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Packaging
Tape & Reel (TR)

Published
2000

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

HTS Code
8542.39.00.01

Subcategory
Line Driver or Receivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
5

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
28

JESD-30 Code
R-PDSO-G28

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
3.3/5V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
3V

Nominal Supply Current
1μA

Data Rate
250 kbps

Differential Output
NO

Input Characteristics
STANDARD

Interface IC Type
LINE TRANSCEIVER

Driver Number of Bits
5

Receiver Number of Bits
3

Interface Standard
EIA-232; TIA-232; V.24; V.28

Output Low Current-Max
0.0016A

Out Swing-Min
10 V

Length
10.2mm

Height Seated (Max)
2mm

Width
5.3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ICL3238CA-T.

Datasheets:

intersil-icl3238cat-datasheets-1363.pdf

ICL3238CA-T Overview

This driver chip is excellent for driving common LEDs due to its enhanced SSOP package.The package of this receiver is Tape & Reel (TR).Driver ICs in this category can operate efficiently with a supply voltage range of 3.3V.Wide receiver has 28 terminations built in for driving or receiving signals from data.As a standard package, this transceiver comes with a 28-pin layout that follows the market standard.This package size decreases dramatically due to optical transceiver downsizing and high-density Surface Mount mounting technologies.It provided a 5-bit resolution capability with this ic receiver.As a general rule, this receiver has a resolution of 3 bits that is usually specified.A rf transceiver module named Line Driver or Receivers belongs to this subcategory.There is one driver IC that is designed to operate from a 3.3/5V power supply, and only one driver IC in total.In ic receiver, the interface IC type used for managing and controlling information sharing is LINE TRANSCEIVER.ICs in this transceiver module cannot operate over 70°C.Manufacturers recommend operating this chip with a voltage below 5.5V.A voltage supply of at least 3V is necessary to run this module isolated transceiver.

ICL3238CA-T Features

Tape & Reel (TR) package
28 pin count
3.3/5V power supply

ICL3238CA-T Applications

There are a lot of Intersil (Renesas Electronics America)
ICL3238CA-T Drivers/Receivers/Transceivers applications.

Cordless telephone
Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
Tuner
Portable radio
Car radio
Satellite radio receiver
