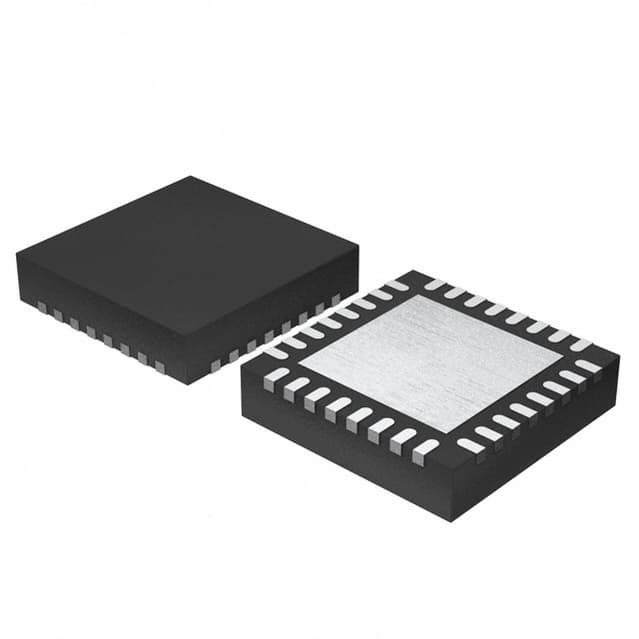

Renesas EL5427CL-T7

Manufacturer No:

EL5427CL-T7

Manufacturer:

Renesas

Package:

Description:

12 Channels 120mA per Channel 2nA Instrumentational OP Amps 0.05μA 32 Pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5427CL-T7 information

Renesas EL5427CL-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5427CL-T7.

Type
Parameter

Mount
Surface Mount

Number of Pins
32

Published
2002

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.33.00.01

Subcategory
Buffer Amplifier

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
12

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
32

Qualification Status
Not Qualified

Power Supplies
5/+-5/15V

Temperature Grade
INDUSTRIAL

Operating Supply Current
1.6mA

Supply Current-Max
2.4mA

Slew Rate
2.2 V/μs

Amplifier Type
BUFFER

Current - Input Bias
2nA

Output Current per Channel
120mA

Input Offset Voltage (Vos)
1mV

Neg Supply Voltage-Nom (Vsup)
-5V

Average Bias Current-Max (IIB)
0.05μA

Supply Voltage Limit-Max
9V

-3db Bandwidth
2.5MHz

Bias Current-Max (IIB) @25C
0.05μA

Neg Supply Voltage-Max (Vsup)
-9V

Length
6mm

Height Seated (Max)
1mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas EL5427CL-T7.

Datasheets:

intersil-el5427clt7-datasheets-6938.pdf

EL5427CL-T7 Overview

Buffer amps of this type are called BUFFER-types. The number of terminations is approaching the 32 mark. The total number of pins on linear amplifier is 32. The linear amplifier should be run at 5V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Buffer Amplifier devices. 32 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 1mV. It is possible to operate this buffer amplifier from a supply current of 1.6mA . Op amp ic has 12 channels. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 85°C, Instrumentation amplifier should not be used.

EL5427CL-T7 Features

32 Pins
supply voltage of 5V

EL5427CL-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5427CL-T7 Instrumentational OP Amps applications.

Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
