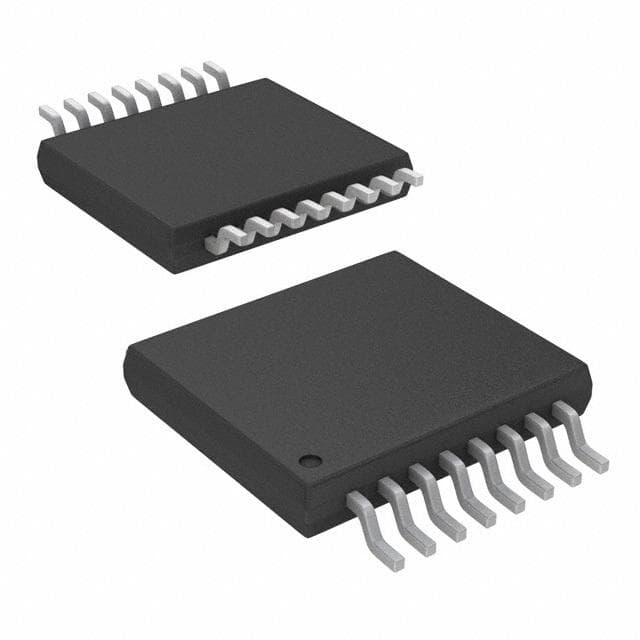

Renesas EL5411IREZ-T7
Manufacturer No:
EL5411IREZ-T7
Manufacturer:
Package:
HTSSOP EP
Description:
4 Channels 65mA per Channel 2nA 45 dB Instrumentational OP Amps 15V 14 Pins HTSSOP EP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EL5411IREZ-T7 information
Renesas EL5411IREZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5411IREZ-T7.
- Type
- Parameter
- Mount
- Surface Mount
- Package / Case
- HTSSOP EP
- Number of Pins
- 14
- Packaging
- Tape & Reel (TR)
- Published
- 2003
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 14
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn)
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Subcategory
- Operational Amplifier
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 4
- Terminal Pitch
- 0.65mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Pin Count
- 14
- Operating Supply Voltage
- 15V
- Temperature Grade
- INDUSTRIAL
- Max Supply Voltage
- 16.5V
- Min Supply Voltage
- 4.5V
- Operating Supply Current
- 10mA
- Nominal Supply Current
- 15mA
- Slew Rate
- 75 V/?s
- Amplifier Type
- OPERATIONAL AMPLIFIER
- Common Mode Rejection Ratio
- 45 dB
- Current - Input Bias
- 2nA
- Output Current per Channel
- 65mA
- Input Offset Voltage (Vos)
- 3mV
- Gain Bandwidth Product
- 32MHz
- Voltage Gain
- 70dB
- Max Dual Supply Voltage
- 8.25V
- -3db Bandwidth
- 60MHz
- Min Dual Supply Voltage
- 2.25V
- Length
- 5mm
- Height Seated (Max)
- 1.2mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas EL5411IREZ-T7.
Datasheets:
EL5411IREZ-T7 Overview
In the package, you will find a HTSSOP EP-case to contain the op amp ic. The instrumentation amplifier in this picture is of the OPERATIONAL AMPLIFIER-type. A Tape & Reel (TR) case is used for delivering the op amp. During the past two weeks, there have been close to 14 terminations. A total of 14 pins are located on this board. This particular linear amplifier is a type of Operational Amplifier device, to be precise. The op amp ic has an array of 14 pins on it. Op amp rates 3mV as input offset voltage. Using an 10mA supply current, this operational amplifier ics can be operated. You should keep the voltage gain at 70dB for the time being. On the buffer amps, there are 4 channels that can be used. To operate this buffer amplifier, the temperature must not be lower than -40°C. A temperature greater than 85°C should not be used for the operation of buffer amplifier. The operating supply voltage of the buffer op amp is rated at 15V. This electric component can work from a voltage of under 16.5V as far as supply voltage is concerned. A voltage of 4.5V or higher is recommended for the linear amplifier's supply voltage. This electrical part should be conducted under the dual supply voltage of 8.25V volts when you conduct this part.
EL5411IREZ-T7 Features
14 Pins
70dB voltage gain
EL5411IREZ-T7 Applications
There are a lot of Intersil (Renesas Electronics America)
EL5411IREZ-T7 Instrumentational OP Amps applications.
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
- Signal operation
- Video computer boards
