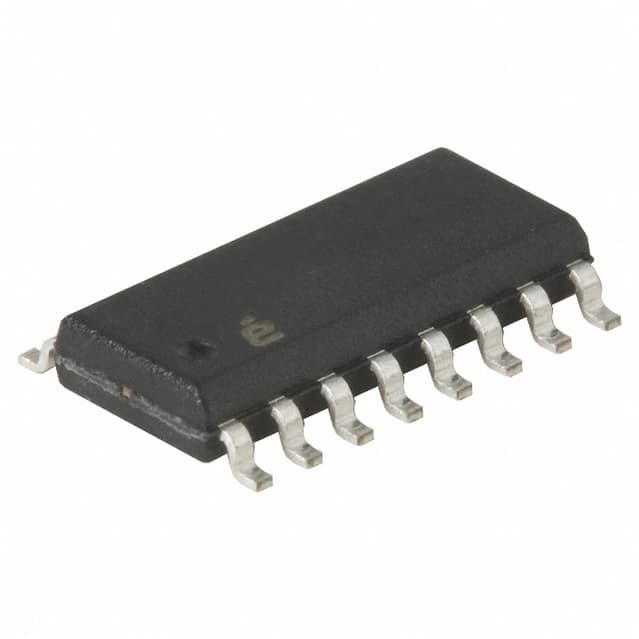

Renesas EL5306ISZ

Manufacturer No:

EL5306ISZ

Manufacturer:

Renesas

Package:

SOIC

Description:

3 Channels 100mA per Channel 1.5μA Instrumentational OP Amps 9V SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5306ISZ information

Renesas EL5306ISZ technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5306ISZ.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
16

Published
2003

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
IT CAN ALSO OPERATE WITH 5V TO 12V SINGLE SUPPLY

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
3

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
40

Operating Supply Voltage
9V

Temperature Grade
INDUSTRIAL

Number of Channels
3

Max Supply Voltage
12V

Min Supply Voltage
5V

Nominal Supply Current
5.46mA

Quiescent Current
1.5mA

Slew Rate
4500 V/μs

Current - Input Bias
1.5μA

Output Current per Channel
100mA

Input Offset Voltage (Vos)
1mV

Bandwidth
380000 kHz

Power Supply Rejection Ratio (PSRR)
75dB

Max Dual Supply Voltage
6V

-3db Bandwidth
380MHz

Min Dual Supply Voltage
2.5V

Consumer IC Type
VIDEO AMPLIFIER

Length
9.905mm

Height Seated (Max)
1.727mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5306ISZ.

EL5306ISZ Overview

In the package, you will find a SOIC-case to contain the op amp ic. During the past two weeks, there have been close to 16 terminations. The op amp ic has an array of 16 pins on it. Op amp rates 1mV as input offset voltage. Using an 1.5mA supply current, this operational amplifier ics can be operated. On the buffer amps, there are 3 channels that can be used. To operate this buffer amplifier, the temperature must not be lower than -40°C. A temperature greater than 85°C should not be used for the operation of buffer amplifier. The operating supply voltage of the buffer op amp is rated at 9V. This electric component can work from a voltage of under 12V as far as supply voltage is concerned. A voltage of 5V or higher is recommended for the linear amplifier's supply voltage. This electrical part should be conducted under the dual supply voltage of 6V volts when you conduct this part. The current is quiescent at 1.5mA. Using the VIDEO AMPLIFIER column, it is possible to sort by the consumer IC type of the electronic ic chip. Refer to this op amp ic's additional benefit: IT CAN ALSO OPERATE WITH 5V TO 12V SINGLE SUPPLY.

EL5306ISZ Features

EL5306ISZ Applications

There are a lot of Intersil (Renesas Electronics America)
EL5306ISZ Instrumentational OP Amps applications.

Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video computer boards
