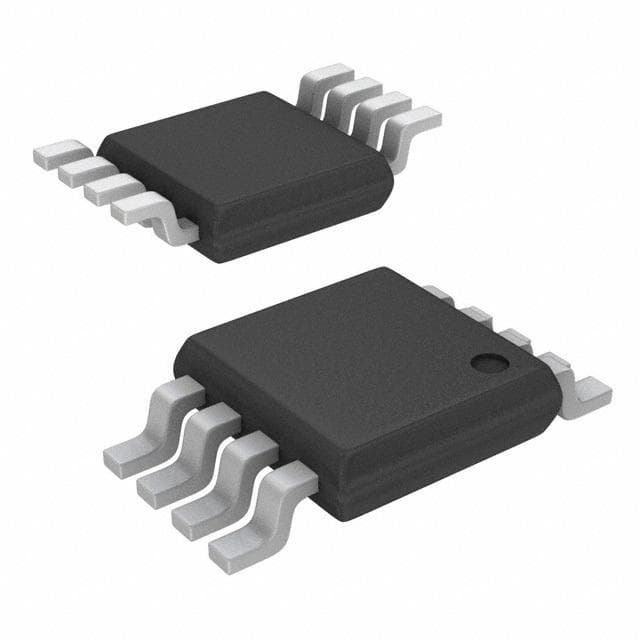

Renesas EL5220TIYZ-T13

Manufacturer No:

EL5220TIYZ-T13

Manufacturer:

Renesas

Package:

MSOP

Description:

2 Channels 65mA per Channel 2nA 45 dB Instrumentational OP Amps 0.05μA 18V MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5220TIYZ-T13 information

Renesas EL5220TIYZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5220TIYZ-T13.

Type
Parameter

Factory Lead Time
5 Weeks

Mount
Surface Mount

Package / Case
MSOP

Number of Pins
8

Published
2003

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Packing Method
TAPE AND REEL

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.65mm

Operating Supply Voltage
18V

Temperature Grade
INDUSTRIAL

Number of Channels
2

Min Supply Voltage
4.5V

Operating Supply Current
650μA

Nominal Supply Current
1.5mA

Slew Rate
12 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
45 dB

Current - Input Bias
2nA

Output Current per Channel
65mA

Input Offset Voltage (Vos)
5mV

Bandwidth
12MHz

Gain Bandwidth Product
8MHz

Neg Supply Voltage-Nom (Vsup)
-5V

Unity Gain BW-Nom
8000 kHz

Voltage Gain
105dB

Average Bias Current-Max (IIB)
0.05μA

Low-Offset
NO

Frequency Compensation
YES

Max Dual Supply Voltage
9.5V

Low-Bias
NO

Micropower
YES

-3db Bandwidth
12MHz

Min Dual Supply Voltage
2.25V

Download datasheets and manufacturer documentation for Renesas EL5220TIYZ-T13.

EL5220TIYZ-T13 Overview

Packaged in a MSOP case, the buffer op amp is ready to use. An op amp ic of the OPERATIONAL AMPLIFIER type. There is a growing number of terminations approaching the number of 8. I would like to remind you that this buffer op amp should be powered by an 5V battery. I would like to specify that this buffer amplifier belongs to the Operational Amplifier-type of devices. A total of 8 pins are present on the instrumentation amplifier. There is an input offset voltage of 5mV for this buffer op amp. As long as the supply current of the chip does not exceed 650μA, this op amp ic can operate. 105dB should remain the voltage gain. As far as the device is concerned, buffer amplifier has 2 channels. For the buffer op amp to operate properly, it must be above the temperature of -40°C degrees Celsius. No temperature greater than 85°C should be used. The operating supply voltage of the buffer op amp is rated at 18V. For packing the buffer amplifier, the TAPE AND REEL-axis is adopted. In terms of the supply voltage, this electrical part is capable of operating at low voltage levels of under 19V. A high supply voltage of more than 4.5V is recommended for the instrumentation amplifier's supply voltage. As a rule of thumb, you should conduct this electronic part under a dual voltage supply of 9.5V volts.

EL5220TIYZ-T13 Features

supply voltage of 5V
105dB voltage gain

EL5220TIYZ-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5220TIYZ-T13 Instrumentational OP Amps applications.

Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
