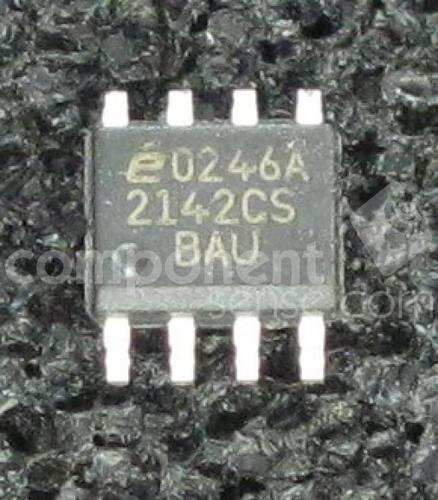

Electric Imp Inc. EL2142CS

Manufacturer No:

EL2142CS

Manufacturer:

Electric Imp Inc.

Package:

SOIC

Description:

60mA per Channel 6?A Instrumentational OP Amps SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL2142CS information

Electric Imp Inc. EL2142CS technical specifications, attributes, parameters and parts with similar specifications to Electric Imp Inc. EL2142CS.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Packaging
Bulk

Published
2002

Number of Terminations
8

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Line Driver or Receivers

Technology
BICMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
5V

JESD-30 Code
R-PDSO-G8

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
6.3V

Power Supplies
+-5V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
3V

Number of Circuits
1

Operating Supply Current
11mA

Slew Rate
400 V/?s

Current - Input Bias
6?A

Output Characteristics
TOTEM-POLE

Input Offset Voltage (Vos)
10mV

Gain Bandwidth Product
200MHz

Differential Output
NO

Output Polarity
TRUE

Input Characteristics
DIFFERENTIAL

-3db Bandwidth
150MHz

Interface IC Type
LINE RECEIVER

Receiver Number of Bits
1

Interface Standard
GENERAL PURPOSE

Negative Supply Voltage-Nom
-5V

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Electric Imp Inc. EL2142CS.

EL2142CS Overview

A SOIC case is used to package the op amp. The case in which buffer amplifier is delivered is called a Bulk case. It is estimated that there will be 8 terminations in the next few months. It is important to remember that this op amp should be operated at a voltage of 5V volts. It should be noted that this op amp is a type of Line Driver or Receivers device. In terms of the input offset voltage, instrumentation amplifier rates at 10mV. An 11mA volt supply current is needed for this linear amplifier to operate. On this instrumentation amplifier, there are 1 circuits that are connected together. In order for op amp to function properly, the temperature should not be lower than -40°C degrees Celsius. Instrumentation amplifier should only be used at temperatures up to 85°C. Op amp's interface IC type can be classified as LINE RECEIVER.
