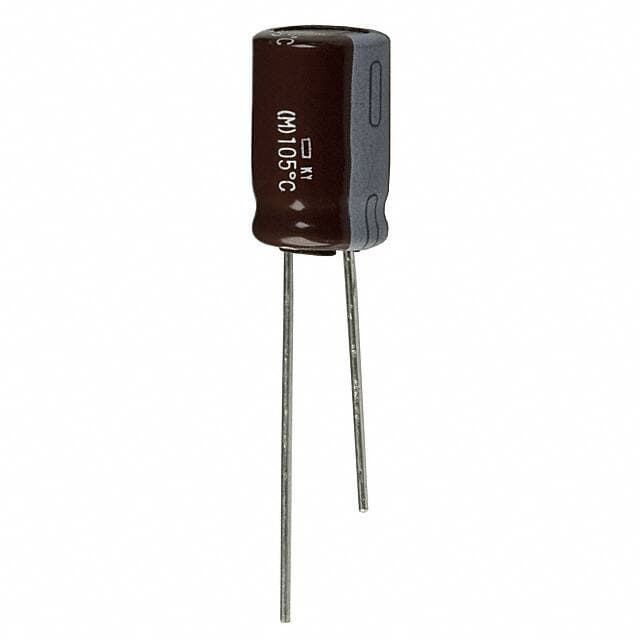

United Chemi-Con EKY-100ETD102MJ16S

Manufacturer No:

EKY-100ETD102MJ16S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KY 1000?F Capacitor ±20% Tape & Box (TB) Through Hole 1.21A 0.394Dia 10.00mm -40°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKY-100ETD102MJ16S information

United Chemi-Con EKY-100ETD102MJ16S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKY-100ETD102MJ16S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~105°C

Packaging
Tape & Box (TB)

Series
KY

Published
2016

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
General Purpose

Capacitance
1000?F

Voltage - Rated DC
10V

Lead Pitch
5.0038mm

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
6000 Hrs @ 105°C

Ripple Current
1.21A

Polarization
Polar

Life (Hours)
6000 hours

Impedance
60mOhm

Ripple Current @ Low Frequency
726mA @ 120Hz

Height Seated (Max)
0.689 17.50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKY-100ETD102MJ16S.

Datasheets:

unitedchemicon-eky500ell102mk40s-datasheets-0989.pdf

EKY-100ETD102MJ16S Overview

During full charge, the ripple current is 1.21A @ 100kHz.When the battery is charged to its lowest level, the ripple current is 726mA @ 120Hz.You should keep the height of the seat (Max) below 0.689 17.50mm.Rated DC voltage of 10V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -40°C~105°C.

EKY-100ETD102MJ16S Features

the ripple current is 1.21A @ 100kHz.
the ripple current is 726mA @ 120Hz.
voltage - Rated DC of 10V
an operating temperature of -40°C~105°C

EKY-100ETD102MJ16S Applications

There are a lot of United Chemi-Con
EKY-100ETD102MJ16S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
