SKYWORKS EFM32GG290F1024-BGA112

Manufacturer No:

EFM32GG290F1024-BGA112

Manufacturer:

SKYWORKS

Package:

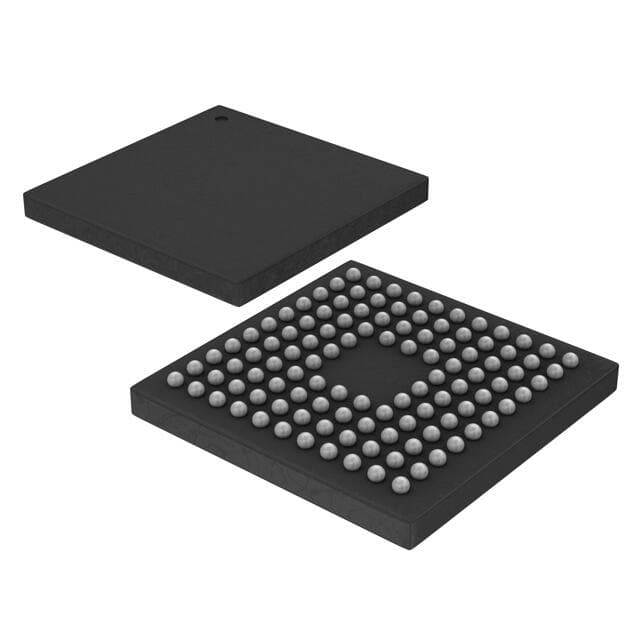

112-LFBGA

Description:

1MB 1M x 8 FLASH ARM® Cortex®-M3 32-Bit Microcontroller Giant Gecko Series 112 Pin 48MHz 3V 112-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EFM32GG290F1024-BGA112 information

SKYWORKS EFM32GG290F1024-BGA112 technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS EFM32GG290F1024-BGA112.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
112-LFBGA

Surface Mount
YES

Number of Pins
112

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
Giant Gecko

Published
2013

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
112

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
3V

Terminal Pitch
0.8mm

Frequency
48MHz

Operating Supply Voltage
3V

Interface
EBI/EMI, I2C, I2S, IrDA, SPI, UART, USART

Memory Size
1MB

Oscillator Type
Internal

Number of I/O
90

RAM Size
128K x 8

Voltage - Supply (Vcc/Vdd)
1.85V~3.8V

Core Processor
ARM® Cortex®-M3

Peripherals
Brown-out Detect/Reset, DMA, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
1MB 1M x 8

Connectivity
EBI/EMI, I2C, IrDA, SmartCard, SPI, UART/USART

Bit Size
32

Data Converter
A/D 8x12b; D/A 2x12b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

PWM Channels
YES

DAC Channels
YES

Number of Timers/Counters
3

Address Bus Width
28

ROM (words)
1048576

Core Architecture
ARM

Number of Programmable I/O
90

Length
10mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SKYWORKS EFM32GG290F1024-BGA112.

Datasheets:

siliconlabs-efm32gg290f1024gebga112r-datasheets-0601.pdf

siliconlabs-efm32gg980f1024geqfp100r-datasheets-7810.pdf

EFM32GG290F1024-BGA112 Overview

Packaged in a 112-LFBGA format. A total of 90 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 32-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~85°C TA. A Giant Gecko series electrical component is used in this application. This program has a program memory of 1MB 1M x 8 bytes, which is the size of the program. With a ARM® Cortex®-M3 Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER, RISC uPs/uCs/peripheral parts. There are 112 terminations on the IC chip, which means there are 112 terminations on the integrated circuit chip. In addition, MCU chip comes with a 32-bit size. Microcontroller chip has outputs of 3V volts. The system has YES channels for DMA communication. There is 1MB memory size assigned to the part. At a frequency of 48MHz, Microcontroller can operate efficiently. This MCU Chip uses YES PWM channels to operate. Chips have 112 pins. There are 3 timers/counters in this device. It is equipped with a ARM core architecture which is integrated into it. In the 90 Programmable I/O section, it can be programmed in many different ways.

EFM32GG290F1024-BGA112 Features

112-LFBGA package
Mounting type of Surface Mount

EFM32GG290F1024-BGA112 Applications

There are a lot of Silicon Labs
EFM32GG290F1024-BGA112 Microcontroller applications.

Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
