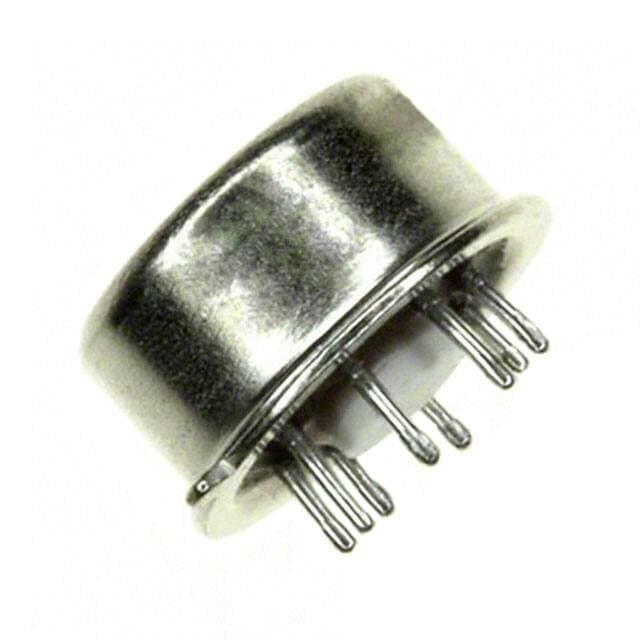

ADI AD744TH/883B
Manufacturer No:
AD744TH/883B
Manufacturer:
Package:
TO-99-8
Description:
1 Channels 6.25mA per Channel 88 dB Instrumentational OP Amps AD744 8 Pins TO-99-8
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AD744TH/883B information
ADI AD744TH/883B technical specifications, attributes, parameters and parts with similar specifications to ADI AD744TH/883B.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 2 weeks ago)
- Factory Lead Time
- 12 Weeks
- Contact Plating
- Lead, Tin
- Mount
- Through Hole
- Package / Case
- TO-99-8
- Number of Pins
- 8
- Packaging
- Tube
- JESD-609 Code
- e0
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Terminal Finish
- Tin/Lead (Sn63Pb37)
- Max Operating Temperature
- 125°C
- Min Operating Temperature
- -55°C
- Subcategory
- Operational Amplifier
- Max Power Dissipation
- 500mW
- Technology
- BIFET
- Terminal Position
- BOTTOM
- Terminal Form
- WIRE
- Peak Reflow Temperature (Cel)
- NOT APPLICABLE
- Number of Functions
- 1
- Supply Voltage
- 15V
- Time@Peak Reflow Temperature-Max (s)
- NOT APPLICABLE
- Base Part Number
- AD744
- Pin Count
- 8
- Qualification Status
- Not Qualified
- Temperature Grade
- MILITARY
- Number of Channels
- 1
- Max Supply Voltage
- 36V
- Min Supply Voltage
- 9V
- Power Dissipation
- 500mW
- Output Current
- 6.25mA
- Quiescent Current
- 3.5mA
- Supply Current-Max
- 4mA
- Slew Rate
- 75 V/μs
- Architecture
- VOLTAGE-FEEDBACK
- Amplifier Type
- OPERATIONAL AMPLIFIER
- Common Mode Rejection Ratio
- 88 dB
- Output Current per Channel
- 6.25mA
- Input Offset Voltage (Vos)
- 500μV
- Gain Bandwidth Product
- 13MHz
- Neg Supply Voltage-Nom (Vsup)
- -15V
- Unity Gain BW-Nom
- 13000 kHz
- Voltage Gain
- 112.04dB
- Power Supply Rejection Ratio (PSRR)
- 95dB
Download datasheets and manufacturer documentation for ADI AD744TH/883B.
Datasheets:
ConflictMineralStatement:
AD744TH/883B Overview
The linear amplifier is packaged in a TO-99-8 case. This is a OPERATIONAL AMPLIFIER type op amp. Linear amplifier is delivered in a Tube case. The number of terminations approaches 8. Buffer amplifier has a total of 8 pins. Please take in mind that this instrumentation amplifier should be run at 15V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. The buffer op amp includes 8 pins. Regarding input offset voltage, op amp rates 500μV. Voltage gain should remain at 112.04dB. The op amp ic has 1 channels on it. The temperature should not be lower than -55°C for operational amplifier ics to operate. Use op amps only at temperatures no higher than 125°C. With regard to the supply voltage, this electrical component is capable of working from under 36V. It is advised to keep the op amp's supply voltage higher than 9V. You should conduct this electronic component under the dual supply voltage of 18V. Buffer amplifier has a quiescent current of 3.5mA.
AD744TH/883B Features
8 Pins
supply voltage of 15V
112.04dB voltage gain
AD744TH/883B Applications
There are a lot of Analog Devices Inc.
AD744TH/883B Instrumentational OP Amps applications.
- Inverse/same-phase proportional circuit
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
