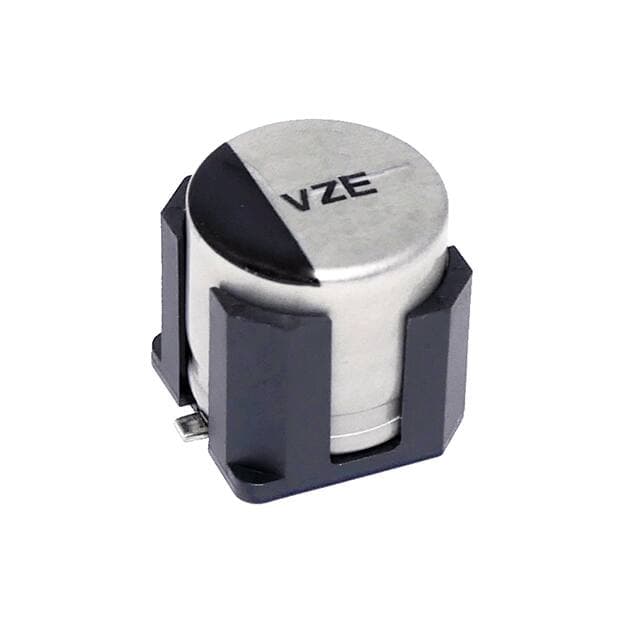

Panasonic EEH-ZE1V271V

Manufacturer No:

EEH-ZE1V271V

Manufacturer:

Panasonic

Package:

Radial, Can - SMD

Description:

270?F ±20% Radial, Can - SMD 0.413 10.50mm Tape & Reel (TR) 20mOhm ZE, Anti-Vibration Surface Mount Hybrid Automotive

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EEH-ZE1V271V information

Panasonic EEH-ZE1V271V technical specifications, attributes, parameters and parts with similar specifications to Panasonic EEH-ZE1V271V.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Surface Mount Land Size
0.406Lx0.406W 10.30mmx10.30mm

Operating Temperature
-55°C~145°C

Packaging
Tape & Reel (TR)

Series
ZE, Anti-Vibration

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
Hybrid

Applications
Automotive

Voltage - Rated
35V

Capacitance
270?F

Voltage - Rated DC
35V

ESR (Equivalent Series Resistance)
20mOhm

Lifetime @ Temp
2000 Hrs @ 145°C

Ripple Current @ Low Frequency
135mA @ 100Hz

Ripple Current @ High Frequency
900mA @ 100kHz

Height Seated (Max)
0.413 10.50mm

RoHS Status
RoHS Compliant

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for Panasonic EEH-ZE1V271V.

EEH-ZE1V271V Overview

900mA @ 100kHz ripple current @ High Frequency is needed to power systems.There is an ESR (Equivalent Series Resistance) of 20mOhm on this electrical device.A ripple current @ Low Frequency is required for 135mA @ 100Hz to fully perform its function.Ideally, the operating temperature should be -55°C~145°C.

EEH-ZE1V271V Features

900mA @ 100kHz ripple current on a high frequency
a 20mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~145°C

EEH-ZE1V271V Applications

There are a lot of Panasonic Electronic Components
EEH-ZE1V271V applications of aluminum polymer capacitors.

LED driver power supplies
Phone chargers
Motherboards
Servers and adapters (laptop power supplies)
Medical equipment
Switching Power Supply and DC/DC Converter.
Buck up Power Supplies of CPU(VRM etc.)
Miniature high Power Supply.
