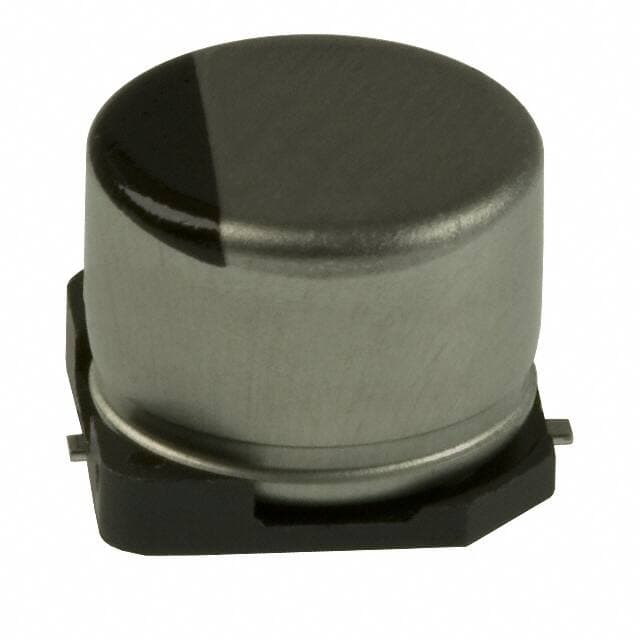

Panasonic EEE-1EA101UP

Manufacturer No:

EEE-1EA101UP

Manufacturer:

Panasonic

Package:

Radial, Can - SMD

Description:

S 100μF Capacitor ±20% Tape & Reel (TR) Surface Mount 91mA 0.315Dia 8.00mm -40°C~85°C Polar Radial, Can - SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EEE-1EA101UP information

Panasonic EEE-1EA101UP technical specifications, attributes, parameters and parts with similar specifications to Panasonic EEE-1EA101UP.

Type
Parameter

Factory Lead Time
17 Weeks

Contact Plating
Tin

Mount
PCB, Surface Mount

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Terminal Shape
FLAT

Dielectric Material
ALUMINUM (WET)

Surface Mount Land Size
0.327Lx0.327W 8.30mmx8.30mm

Lifetime @ Temp.
2000 Hrs @ 85°C

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
S

Published
2008

Size / Dimension
0.315Dia 8.00mm

Tolerance
±20%

JESD-609 Code
e3/e6

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
SMD/SMT

ECCN Code
EAR99

Applications
Automotive

Capacitance
100μF

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Size Code
3333

Leakage Current
3μA

Ripple Current
91mA

Polarization
Polar

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
91mA @ 120Hz

Ripple Current @ High Frequency
154.7mA @ 10kHz

Dissipation Factor
0.16 %

Ripple Current (AC)
91mA

Features
General Purpose

Diameter
8mm

Height
6.2mm

Height Seated (Max)
0.244 6.20mm

Length
9.5mm

Width
8.3mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for Panasonic EEE-1EA101UP.

EEE-1EA101UP Overview

In terms of ripple current, it is 154.7mA @ 10kHz at full charge.When the charge is lowest, the ripple current is 91mA @ 120Hz.Sitting height (Max) should not exceed 0.244 6.20mm.Based on a dissipation factor of 0.16 %, it operates.Voltage - Rated DC of 25V is required to operate this capacitor.It is recommended to maintain the operating temperature at -40°C~85°C in order to maximize efficiency.

EEE-1EA101UP Features

the ripple current is 154.7mA @ 10kHz.
the ripple current is 91mA @ 120Hz.
a dissipation factor of 0.16 %
voltage - Rated DC of 25V
an operating temperature of -40°C~85°C

EEE-1EA101UP Applications

There are a lot of Panasonic Electronic Components
EEE-1EA101UP applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
