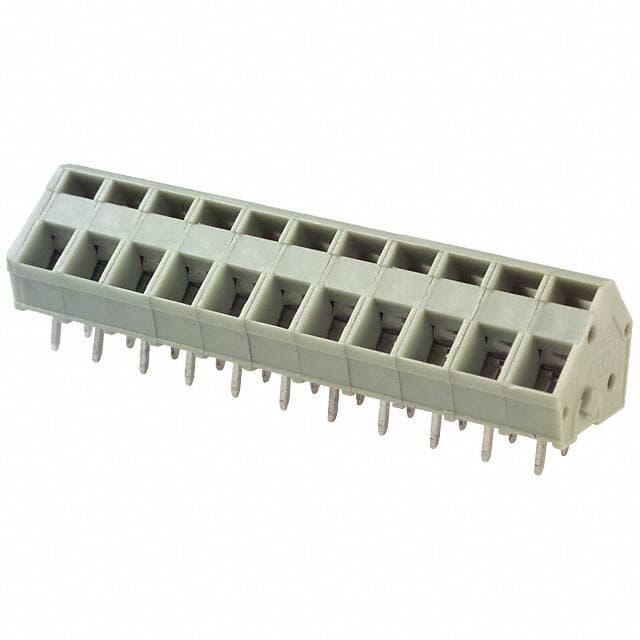

On-Shore ED3000/11

Manufacturer No:

ED3000/11

Manufacturer:

Package:

Description:

0.197 5.00mm Gray, Slate Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Leg Spring, Push-In Spring 1 Levels 14-28 AWG ED3000

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ED3000/11 information

On-Shore ED3000/11 technical specifications, attributes, parameters and parts with similar specifications to On-Shore ED3000/11.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Number of Pins
11

Housing Material
Polyamide (PA), Nylon

Clamp Material - Plating
Copper

Operating Temperature
-30°C~105°C

Packaging
Bulk

Series
ED3000

Feature
Interlocking (Side)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Screwless

Number of Positions
11

Max Operating Temperature
105°C

Min Operating Temperature
-30°C

Color
Gray, Slate

Number of Rows
1

Pitch
0.197 5.00mm

Lead Pitch
5mm

Housing Color
Grey

Wire Gauge
14-28 AWG

Voltage
300V

Plating
Copper

Current
16A

Wire Gauge (Max)
28 AWG

Wire Gauge (Min)
14 AWG

Positions Per Level
11

Mating Orientation
45° (135°) Angle with Board

Wire Termination
Screwless - Leg Spring, Push-In Spring

Number of Positions Per Level
11

Height
12.9mm

Length
55mm

Width
14.2mm

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Lead Free
Lead Free

Download datasheets and manufacturer documentation for On-Shore ED3000/11.

Datasheets:

onshoretechnologyinc-ed30007-datasheets-5735.pdf

ED3000/11 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the ED3000 Series of products.11 pins are provided on the device.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -30°C at all times.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.There is no operating temperature for the device.
