On-Shore ED120/10DS
On-Shore ED120/10DS

On-Shore ED120/10DS

Manufacturer No:

ED120/10DS

Manufacturer:

On-Shore

Package:

Description:

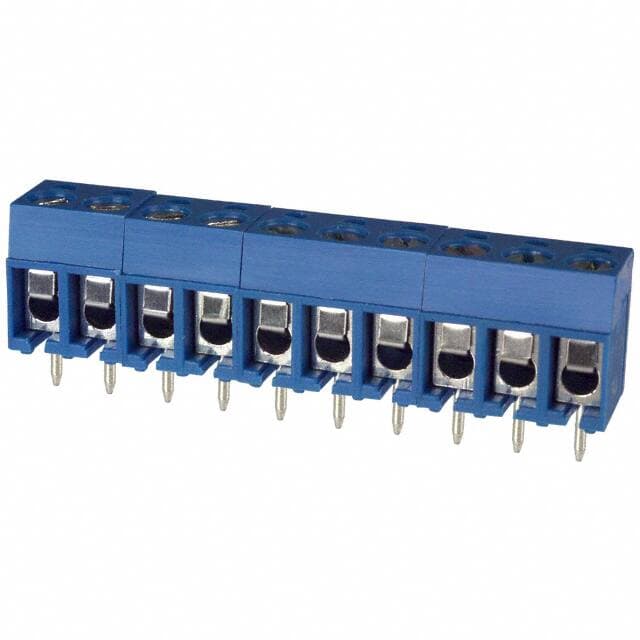

0.200 5.08mm Blue Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG ED120/DS

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ED120/10DS information

On-Shore ED120/10DS technical specifications, attributes, parameters and parts with similar specifications to On-Shore ED120/10DS.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Plating
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Housing Material
  • Polyamide (PA), Nylon
  • Clamp Material - Plating
  • Steel, Stainless
  • Operating Temperature
  • -30°C~105°C
  • Packaging
  • Bulk
  • Series
  • ED120/DS
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Screw
  • ECCN Code
  • EAR99
  • Color
  • Blue
  • Number of Rows
  • 1
  • Additional Feature
  • STANDARD: UL 94V-0, PA
  • HTS Code
  • 8536.69.40.40
  • Pitch
  • 0.200 5.08mm
  • Lead Pitch
  • 5.08mm
  • Wire Gauge
  • 14-22 AWG
  • Voltage
  • 300V
  • Plating
  • Steel
  • Number of Levels
  • 1
  • Wire Gauge (Max)
  • 22 AWG
  • Wire Gauge (Min)
  • 14 AWG
  • Number of Decks
  • 1
  • Terminal and Terminal Block Type
  • BARRIER STRIP TERMINAL BLOCK
  • Torque - Screw
  • 0.5 Nm (4.4 Lb-In)
  • Number of Ways
  • 10
  • Safety Approval
  • CUL; UL; VDE
  • Mating Orientation
  • Horizontal with Board
  • Wire Termination
  • Screw - Leaf Spring, Wire Guard
  • Screw Thread
  • M3
  • Number of Positions Per Level
  • 10
  • Wire Cross Section
  • 2.5 mm2
  • Height
  • 13mm
  • Length
  • 50.8mm
  • Width
  • 9mm
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for On-Shore ED120/10DS.

Datasheets:

ED120/10DS Overview


The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the ED120/DS Series of products.In addition, there are other features such as STANDARD: UL 94V-0, PA, to mention only a few.The part is mounted by Through Hole.The device runs in -30°C~105°C Operating Temperature.

ED120/10DS Features


ED120/DS series


ED120/10DS Applications


There are a lot of On Shore Technology Inc.
ED120/10DS Terminal Blocks applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
