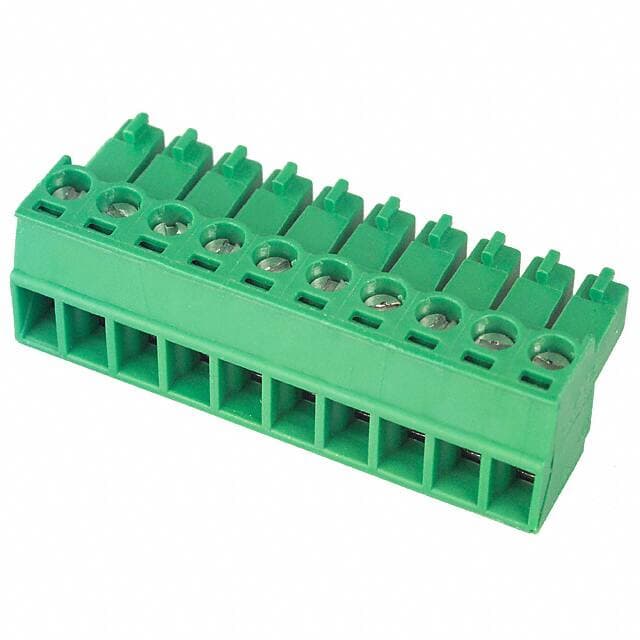

On-Shore ED1550/10

Manufacturer No:

ED1550/10

Manufacturer:

Package:

Description:

Bulk 0.138 3.50mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets ED1550 Polyamide (PA), Nylon Copper Tin Alloy

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ED1550/10 information

On-Shore ED1550/10 technical specifications, attributes, parameters and parts with similar specifications to On-Shore ED1550/10.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Material
Copper Tin Alloy

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Number of Pins
10

Housing Material
Polyamide (PA), Nylon

Operating Temperature
-30°C~105°C

Packaging
Bulk

Series
ED1550

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Screw

Type
Plug, Female Sockets

Number of Positions
10

Max Operating Temperature
105°C

Min Operating Temperature
-30°C

Color
Green

Pitch
0.138 3.50mm

Insulation Height
0.437 11.10mm

Termination Style
Screw

Voltage
300V

Number of Levels
1

Current
8A

Wire Gauge (Max)
28 AWG

Voltage - UL
300V

Wire Gauge or Range - AWG
16-28 AWG

Current - UL
8A

Torque - Screw
0.4 Nm (3.5 Lb-In)

Positions Per Level
10

Plug Wire Entry
180°

Wire Gauge or Range - mm²
1.5mm2

Wire Strip Length
7mm

Number of Positions Per Level
10

Screw Size
M2

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for On-Shore ED1550/10.

Datasheets:

onshoretechnologyinc-edz15509-datasheets-7570.pdf

ED1550/10 Overview

It's mounted Free Hanging (In-Line).We use a Bulk case to package the product.It's from the ED1550 Series.A 10 pin is on the device.Ideally, it should be used at temperatures below 105°C.Temperatures below -30°C are required for this device.It's mounted by Free Hanging.-30°C~105°C Operating Temperature is what the device runs at.The benefts of this part are similar to those of other Plug, Female Sockets products.
