On-Shore ED130/6DS
On-Shore ED130/6DS

On-Shore ED130/6DS

Manufacturer No:

ED130/6DS

Manufacturer:

On-Shore

Package:

Description:

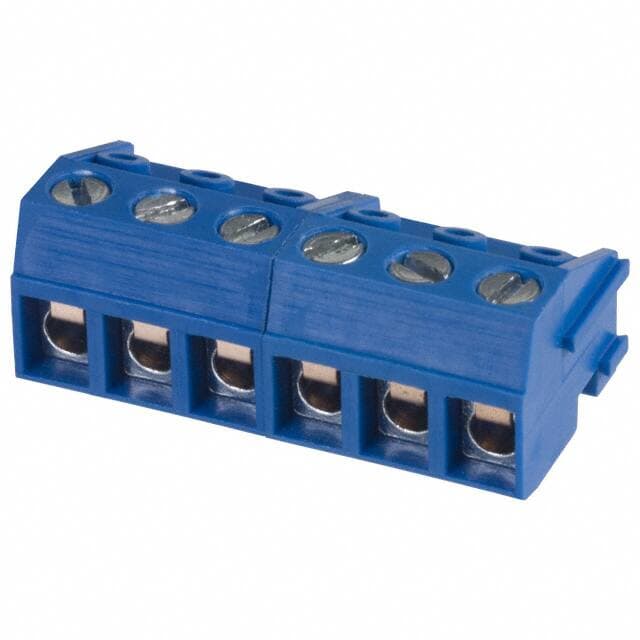

Bulk 0.197 5.00mm Blue 1 Levels Free Hanging (In-Line) Plug for Unshrouded Header ED130 Polyamide (PA), Nylon Copper Beryllium

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ED130/6DS information

On-Shore ED130/6DS technical specifications, attributes, parameters and parts with similar specifications to On-Shore ED130/6DS.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Material
  • Copper Beryllium
  • Contact Plating
  • Tin
  • Mount
  • Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Number of Pins
  • 6
  • Housing Material
  • Polyamide (PA), Nylon
  • Operating Temperature
  • -30°C~105°C
  • Packaging
  • Bulk
  • Series
  • ED130
  • Feature
  • Interlocking (Side)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Screw
  • Type
  • Plug for Unshrouded Header
  • Number of Positions
  • 6
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -30°C
  • Color
  • Blue
  • Number of Rows
  • 1
  • Pitch
  • 0.197 5.00mm
  • Insulation Height
  • 0.425 10.80mm
  • Termination Style
  • Screw
  • Lead Pitch
  • 5mm
  • Voltage
  • 300V
  • Number of Levels
  • 1
  • Current
  • 10A
  • Wire Gauge (Max)
  • 22 AWG
  • Wire Gauge (Min)
  • 14 AWG
  • Voltage - UL
  • 300V
  • Wire Gauge or Range - AWG
  • 14-22 AWG
  • Current - UL
  • 10A
  • Torque - Screw
  • 0.4 Nm (3.5 Lb-In)
  • Positions Per Level
  • 6
  • Plug Wire Entry
  • 90°
  • Wire Gauge or Range - mm²
  • 1.5mm2
  • Wire Strip Length
  • 6mm
  • Number of Positions Per Level
  • 6
  • Screw Size
  • M2.6
  • Height
  • 10.8mm
  • Width
  • 13.5mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for On-Shore ED130/6DS.

Datasheets:

ED130/6DS Overview


Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the ED130 Series, it can be found in this category.It has 6 pins.Temperatures below 105°C are best for using it.There's a minimum temperature of -30°C for this device.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Free Hanging mounts the part.The device is operating at -30°C~105°C Operating Temperature.There are a lot of similarities between this part and other Plug for Unshrouded Header products.
