Manufacturer No:

EDSTLZ960/16

Manufacturer:

On-Shore

Package:

Description:

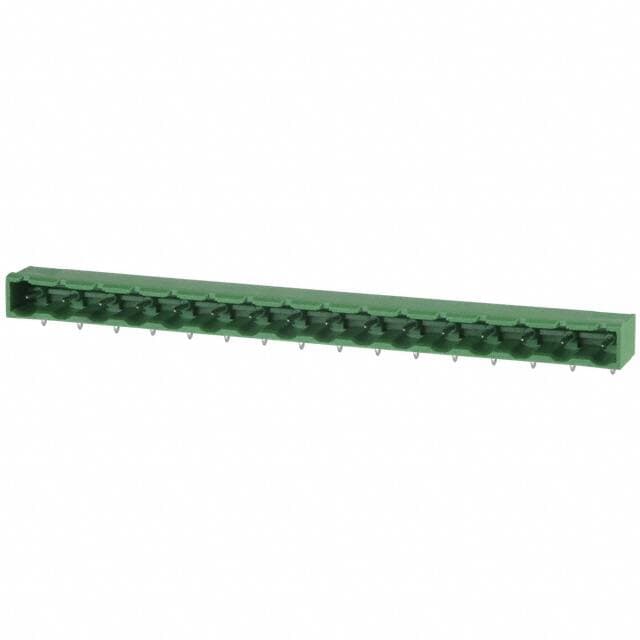

Bulk 0.300 7.62mm Green 1 Levels Solder Header, Male Pins, Shrouded (4 Side) EDSTLZ960 Polyamide (PA), Nylon

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EDSTLZ960/16 information

On-Shore EDSTLZ960/16 technical specifications, attributes, parameters and parts with similar specifications to On-Shore EDSTLZ960/16.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Solder
  • Number of Pins
  • 16
  • Housing Material
  • Polyamide (PA), Nylon
  • Operating Temperature
  • -30°C~105°C
  • Packaging
  • Bulk
  • Series
  • EDSTLZ960
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Type
  • Header, Male Pins, Shrouded (4 Side)
  • Number of Positions
  • 16
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -30°C
  • Color
  • Green
  • Number of Rows
  • 1
  • Pitch
  • 0.300 7.62mm
  • Insulation Height
  • 0.138 3.50mm
  • Lead Pitch
  • 7.62mm
  • Housing Color
  • Green
  • Voltage
  • 300V
  • Contact Tail Length
  • 0.138 3.50mm
  • Number of Levels
  • 1
  • Voltage - UL
  • 300V
  • Positions Per Level
  • 16
  • Header Orientation
  • 90°, Right Angle
  • Number of Positions Per Level
  • 16
  • Height
  • 7.9mm
  • Length
  • 122mm
  • Width
  • 12mm
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for On-Shore EDSTLZ960/16.

Datasheets:

EDSTLZ960/16 Overview


There is a mounting type of Solder for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the EDSTLZ960 Series.Devices with 16 pins are available.You should use it when it's below 105°C.A minimum temperature of -30°C is required for the operation of this device.Through Hole is used to mount the part.In this case, the device operates at -30°C~105°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
