Manufacturer No:

EBC05DRTH

Manufacturer:

Sullins Connector Solutions

Package:

Description:

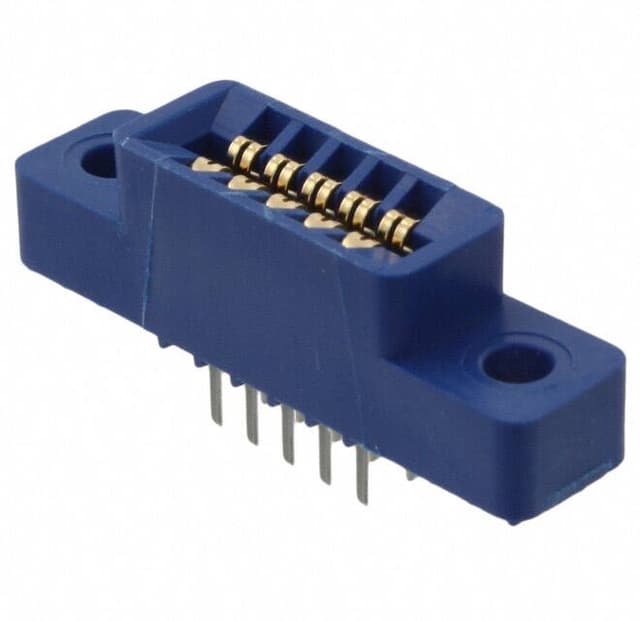

Description: Card Edge Connector, 10 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Locking

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EBC05DRTH information

Sullins Connector Solutions EBC05DRTH technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions EBC05DRTH.

  • Type
  • Parameter
  • Pbfree Code
  • Yes
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • SULLINS CONNECTOR SOLUTIONS INC
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8536.69.40.40
  • Samacsys Manufacturer
  • Sullins
  • Board Mounting Option
  • HOLE .125 DIA.TYP
  • Body Breadth
  • 0.33 inch
  • Body Depth
  • 0.431 inch
  • Body Length
  • 1.375 inch
  • Connector Type
  • CARD EDGE CONNECTOR
  • Contact Finish Mating
  • NOT SPECIFIED
  • Contact Finish Termination
  • MATTE TIN OVER NICKEL
  • Contact Material
  • NOT SPECIFIED
  • Contact Pattern
  • RECTANGULAR
  • Contact Resistance
  • 30 mΩ
  • Contact Style
  • BELLOWED TYPE
  • Filter Feature
  • NO
  • Insulator Material
  • POLYBUTYLENE TEREPHTHALATE
  • JESD-609 Code
  • e3
  • Mating Contact Pitch
  • 0.1 inch
  • Mixed Contacts
  • NO
  • Mounting Style
  • STRAIGHT
  • Mounting Type
  • BOARD
  • Number Of Connectors
  • ONE
  • Number Of PCB Rows
  • 2
  • Number of Rows Loaded
  • 2
  • Operating Temperature-Max
  • 150 °C
  • Operating Temperature-Min
  • -65 °C
  • Plating Thickness
  • 10u inch
  • Rated Current (Signal)
  • 3 A
  • Reference Standard
  • UL
  • Terminal Length
  • 0.2 inch
  • Terminal Pitch
  • 2.54 mm
  • Termination Type
  • SOLDER
  • Total Number of Contacts
  • 10

Download datasheets and manufacturer documentation for Sullins Connector Solutions EBC05DRTH.

Datasheets:

Environmental Information:

EBC05DRTH Overview


The material was packaged in accordance with Tray's specifications.We recommend mounting type Through Hole.Using the connector socket Full Bellows is how the device is connected.

EBC05DRTH Features




EBC05DRTH Applications


There are a lot of Sullins Connector Solutions
EBC05DRTH Edgeboard Connectors applications.


  • Digital Multimeters, PLC's (Programming Logic Controllers)
  • RADAR processing, digital oscilloscopes
  • CMOS Image sensors for mobile applications
  • Medical Instrumentation and medical imaging
  • Music recording
  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer

User Guide
