Sullins Connector Solutions PRPN401PARN
Sullins Connector Solutions PRPN401PARN

Sullins Connector Solutions PRPN401PARN

Manufacturer No:

PRPN401PARN

Manufacturer:

Sullins Connector Solutions

Package:

Description:

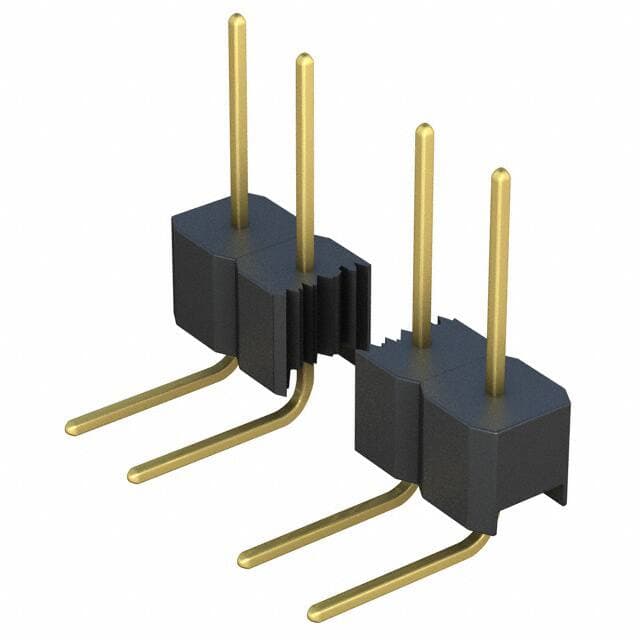

Board Connector, 40 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PRPN401PARN information

Sullins Connector Solutions PRPN401PARN technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions PRPN401PARN.

  • Type
  • Parameter
  • Part Life Cycle Code
  • Obsolete
  • Ihs Manufacturer
  • SULLINS CONNECTOR SOLUTIONS INC
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8536.69.40.40
  • Additional Feature
  • NONE
  • Body Breadth
  • 0.079 inch
  • Body Depth
  • 0.118 inch
  • Body Length
  • 3.15 inch
  • Body/Shell Style
  • RECEPTACLE
  • Connector Type
  • BOARD CONNECTOR
  • Contact Finish Mating
  • NOT SPECIFIED
  • Contact Finish Termination
  • GOLD FLASH
  • Contact Gender
  • MALE
  • Contact Material
  • NOT SPECIFIED
  • Contact Pattern
  • RECTANGULAR
  • Contact Style
  • SQ PIN-SKT
  • Dielectric Withstanding Voltage
  • 500VAC V
  • Filter Feature
  • NO
  • Insulation Resistance
  • 5000000000 Ω
  • Insulator Material
  • POLYBUTYLENE TEREPHTHALATE
  • Mating Contact Pitch
  • 0.079 inch
  • Mixed Contacts
  • NO
  • Mounting Style
  • RIGHT ANGLE
  • Number Of Connectors
  • ONE
  • Number Of PCB Rows
  • 1
  • Number of Rows Loaded
  • 1
  • Operating Temperature-Max
  • 105 °C
  • Operating Temperature-Min
  • -40 °C
  • PCB Contact Pattern
  • RECTANGULAR
  • Plating Thickness
  • FLASH inch
  • Rated Current (Signal)
  • 1 A
  • Reference Standard
  • UL, CSA
  • Terminal Length
  • 0.11 inch
  • Terminal Pitch
  • 2.0066 mm
  • Termination Type
  • SOLDER
  • Total Number of Contacts
  • 40

Download datasheets and manufacturer documentation for Sullins Connector Solutions PRPN401PARN.

Datasheets:

PRPN401PARN Overview


This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.Furthermore, there are other features such as NONE, to name a few.By Through Hole, the part is mounted.Operating temperature is set to -40°C~105°C.

PRPN401PARN Features




PRPN401PARN Applications


There are a lot of Sullins Connector Solutions
PRPN401PARN Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
