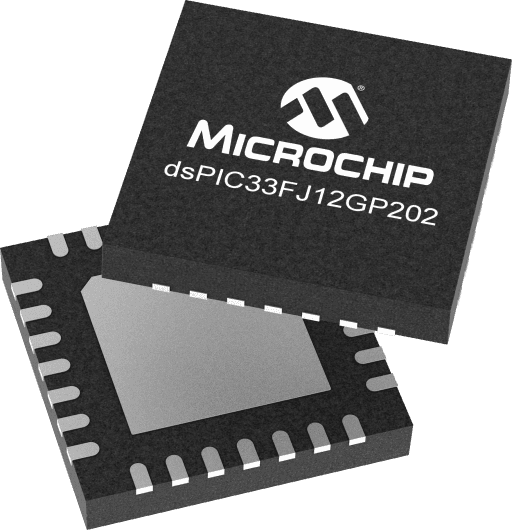

Microchip DSPIC33FJ12GP202-I/ML
Microchip DSPIC33FJ12GP202-I/MLMicrochip DSPIC33FJ12GP202-I/MLMicrochip DSPIC33FJ12GP202-I/MLMicrochip DSPIC33FJ12GP202-I/ML

Microchip DSPIC33FJ12GP202-I/ML

Manufacturer No:

DSPIC33FJ12GP202-I/ML

Manufacturer:

Microchip

Package:

28-VQFN Exposed Pad

Description:

40 MIPS, 12KB Flash, 1KB RAM, 28 pins

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSPIC33FJ12GP202-I/ML information

Microchip DSPIC33FJ12GP202-I/ML technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33FJ12GP202-I/ML.

  • Type
  • Parameter
  • CPU Type
  • dsPIC® DSC
  • CPU Speed Max MHz (megahertz)
  • 40
  • Program Memory Size (KB)
  • 12
  • Multiple Flash Panels
  • No
  • Direct Memory Access (DMA) Channels
  • 0
  • Temp. Range Min.(C°)
  • -40
  • Temp. Range Max.(C°)
  • 125
  • Operation Voltage Min.(V)
  • 3
  • Operation Voltage Max.(V)
  • 3.6
  • Pin Count
  • 28
  • Low Power
  • No
  • Number of Comparators
  • 0
  • ADC Modules
  • 1
  • ADC Channels
  • 10
  • ADC Resolution Max
  • 12
  • ADC Sampling Rate (ksps)
  • 1100
  • Number of DACs
  • 0
  • DAC outputs
  • 0
  • Max DAC Resolution (bits)
  • 0
  • Hardware RTCC
  • No
  • Motor Control PWM Channels
  • 0
  • SMPS PWM Channels
  • 0
  • Number of PWM Time Bases
  • 2
  • Output Compare Channels
  • 4
  • Number of CAN Modules
  • 0
  • Type of CAN module Max
  • None
  • Crypto Engine
  • No
  • Quadrature Encoder Interface (QEI)
  • 0
  • Segment LCD
  • 0
  • LCD/Graphics Interface
  • No
  • Configurable Logic Cell Modules (CLC /CCL)
  • 0
  • Peripheral Pin Select (PPS)/Pin Muxing
  • Yes

Download datasheets and manufacturer documentation for Microchip DSPIC33FJ12GP202-I/ML.

Errata:

Supporting Collateral:

Programming Specifications:

Data Sheets:

Legacy Collaterals:

Miscellaneous:

Brochures:

Application Notes:

Reference Manual:

User Guide:

 •dsPIC33Fs are designed to execute digital filter algorithms and high-speed precision digital control loops, ideal for applications that need to perform under pressure           •General Purpose Digital Signal Controllers (DSCs) with advanced analog and seamless migration options to PIC24F, PIC24H MCUs and dsPIC30F DSCs

    Operating Range
  • Up to 40 MIPS operation (at 3.0-3.6V)
  • Industrial temperature range (-40°C to +85°C)
  • Extended temperature range (-40°C to +125°C)
    High-Performance dsPIC33F core
  • Modified Harvard architecture
  • C compiler optimized instruction set
  • 16-bit wide data path, 24-bit wide instructions
  • Linear program memory addressing up to 4M instruction words
  • Linear data memory addressing up to 64 Kbytes
  • 83 base instructions, mostly one word/one cycle
  • Sixteen 16-bit general purpose registers
  • Two 40-bit accumulators with rounding and saturation options
  • Flexible and powerful addressing modes: - Indirect - Modulo - Bit-Reversed
  • Software stack
  • 16 x 16 fractional/integer multiply operations
  • 32/16 and 16/16 divide operations
  • Single-cycle MAC with accumulator write back for DSP operations and dual data fetch
  • Up to ±16-bit shifts for up to 40-bit data
    Interrupt Controller
  • 5-cycle latency
  • Up to 21 available interrupt sources
  • Up to three external interrupts
  • Seven programmable priority levels
  • Four processor exceptions
    On-Chip Flash and SRAM
  • Flash program memory (12 Kbytes)
  • Data SRAM (1024 bytes)
  • Boot and General Security for Program Flash
    Digital I/O
  • Peripheral Pin Select Functionality
  • Up to 21 programmable digital I/O pins
  • Wake-up/interrupt-on-change for up to 21 pins
  • Output pins can drive from 3.0V to 3.6V
  • Up to 5V output with open drain configurations on 5V tolerant pins
  • 4 mA sink on all I/O pins
    System Management
  • Flexible clock options: - External, crystal, resonator, internal RC - Fully Integrated Phase-Locked Loop (PLL) - Extremely low-jitter PLL
  • Power-up Timer
  • Oscillator Start-up Timer/Stabilizer
  • Watchdog Timer with its own RC oscillator
  • Fail-Safe Clock Monitor
    Power Management
  • On-chip 2.5V voltage regulator
  • Switch between clock sources in real time
  • Idle, Sleep and Doze modes with fast wake-up
    Timers/Capture/Compare
  • Up to three 16-bit timers which can pair up to make one 32-bit timer
  • Input Capture (up to four channels): - Capture on up, down, or both edges
  • 16-bit capture input functions, 4-deep FIFO on each capture
  • Output Compare (up to two channels) with Single or Dual 16-bit Compare mode
    Communication Modules
  • 4-wire SPI: - Framing supports I/O interface to simple codecs, supports 8-bit and 16-bit data and supports all serial clock formats and sampling modes
  • I2C™: - Full Multi-Master Slave mode support, 7-bit and 10-bit addressing, bus collision detection and arbitration, slave address masking and integrated signal conditioning
  • UART: - Provides LIN bus support, IrDA® encoding and decoding in hardware, High-Speed Baud Mode and Hardware Flow Control with CTS and RTS
    Analog-to-Digital Converters (ADCs)
  • ADC with 10-bit, 1.1 Msps or 12-bit, 500 Ksps conversion
  • Two and four simultaneous samples (10-bit ADC)
  • Up to 10 input channels with auto-scanning
  • Conversion start can be manual or synchronized with one of four trigger sources
  • Conversion possible in Sleep mode
  • ±2 LSb max integral nonlinearity
  • ±1 LSb max differential nonlinearity
    Packaging
  • 18-pin PDIP/SOIC
  • 28-pin SPDIP/SOIC/SSOP/QFN

User Guide

PURCHASE
