DSPIC33EP32GS506T-I/PT Information

Microchip DSPIC33EP32GS506T-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33EP32GS506T-I/PT.

Type
Parameter

CPU Type
dsPIC® DSC

CPU Speed Max MHz (megahertz)
70

Program Memory Size (KB)
32

Multiple Flash Panels
True

Direct Memory Access (DMA) Channels
0

Temp. Range Min.(C°)
-40

Temp. Range Max.(C°)
125

Operation Voltage Min.(V)
3

Operation Voltage Max.(V)
3.6

Pin Count
64

Type
Parameter

Low Power
No

Number of Comparators
4

ADC Modules
5

ADC Channels
22

ADC Resolution Max
12

ADC Sampling Rate (ksps)
3250

Number of DACs
4

DAC outputs
2

Max DAC Resolution (bits)
12

Hardware RTCC
No

Download datasheets and manufacturer documentation for Microchip DSPIC33EP32GS506T-I/PT.

dsPIC33EPXXGS50X is a SMPS & Digital Power Conversion Digital Signal Controller. These devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications such as:

• AC to DC Converters

• DC to DC Converters

• Power Factor Correction (PFC)

• Uninterruptible power supply (UPS)

• Inverters

• Embedded Power-Supply Controllers

• Arc Fault Detection

The dsPIC33EPXXGS50X family has many features that help simplify functional safety certifications for ASIL-B and ASIL-C focused applications including:

• Functional Safety Manual and FMEDA available under NDA upon request to your sales office

• MPLAB XC Compiler Functional Safety Manual available with registration

• Learn more about our functional safety capabilities including hardware, software, and supporting collateral

3.0V to 3.6V, -40°C to +85°C, DC to 70 MIPS
3.0V to 3.6V, -40°C to +125°C, DC to 60 MIPS

16K Flash Program Memory
Core: 16-Bit dsPIC33E CPU
Two 40-Bit Wide Accumulators
Code-Efficient (C and Assembly) Architecture
Single-Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle Mixed-Sign MUL Plus Hardware Divide
32-Bit Multiply Support
Two Additional Working Register Sets (reduces context switching)

Individual Time Base and Duty Cycle for each PWM
1.04 ns PWM Resolution (frequency, duty cycle, dead time and phase)
Supports Center-Aligned, Redundant, Complementary and True Independent Output modes
Independent Fault and Current-Limit Inputs
Output Override Control
PWM Support for AC/DC, DC/DC, Inverters, PFC and Lighting

High-Speed ADC module
12-bit with 4 dedicated SAR ADC cores and one shared SAR ADC core
Configurable resolution (up to 12-bit) for each ADC core
Up to 3.25 Msps conversion rate per channel at 12-bit resolution
Dedicated result buffer for each analog channel
Flexible and independent ADC trigger sources
Two digital comparators
Two oversampling filters for increased resolution
ADC with Early Interrupt feature
Four Rail-to-Rail Comparators with Hysteresis
Dedicated 12-bit Digital-to-Analog Converter (DAC) for each analog comparator
DAC reference outputs
External reference inputs
Two Programmable Gain Amplifiers
Single-ended or independent ground reference
Five selectable gains (4x, 8x, 16x, 32x and 64x)
40 MHz gain bandwidth

Reduces CPU Interaction to Improve Performance
Flexible PWM Trigger Options for ADC Conversions
High-Speed Comparator Truncates PWM (15 ns typical)
Supports Cycle-by-Cycle Current mode control
Current Reset mode (variable frequency)

16-Bit and up to Two 32-Bit Timers/Counters
Output Compare (OC) modules, Configurable as Timers/Counters
Input Capture (IC) modules

ASIL-B & ASIL-C focused applications
FMEDA and Safety manual available under NDA upon request to your sales office
Safety qualified XC16 compiler

Multiple redundant clock sources
IO ports read-back
Analog peripherals redundancies
Windowed Watchdog Timer
Hardware traps
SFR locks
Write protection

DSPIC33EP32GS506T-I/PT Relevant information

DSPIC33EP32GS506T-I/PT FAQ

Can I request a quote for DSPIC33EP32GS506T-I/PT?

DSPIC33EP32GS506T-I/PT from Microchip is ready for RFQ submission. Send your target quantity and requirements, and AIChipLink will check current availability, lead time, and quantity-based pricing.

Why is pricing not shown as a fixed value for DSPIC33EP32GS506T-I/PT?

The final price for DSPIC33EP32GS506T-I/PT depends on requested quantity, supply conditions, date code, package option, and destination. An RFQ lets us return the current market quote for your order.

Which specifications should I review for DSPIC33EP32GS506T-I/PT?

DSPIC33EP32GS506T-I/PT is a Microchip Embedded part. Key details include Configurable Logic Cell Modules (CLC /CCL): 0 and Peripheral Pin Select (PPS)/Pin Muxing: Yes; contact us if you need the specifications verified before sourcing.

When will I receive a quotation for DSPIC33EP32GS506T-I/PT?

After you submit the RFQ for DSPIC33EP32GS506T-I/PT, our sales team typically replies within 24 hours with availability, unit pricing, lead time, shipping choices, and possible substitutes.

What is the expected shipping time for DSPIC33EP32GS506T-I/PT?

Once stock for DSPIC33EP32GS506T-I/PT is confirmed, available inventory can generally ship within 1–2 business days. The final schedule depends on quantity, warehouse source, and delivery address.

Can AIChipLink help find alternatives to DSPIC33EP32GS506T-I/PT?

Yes. If DSPIC33EP32GS506T-I/PT is unavailable, end-of-life, or outside your schedule, we can review comparable Microchip Embedded parts and compatible replacement options.

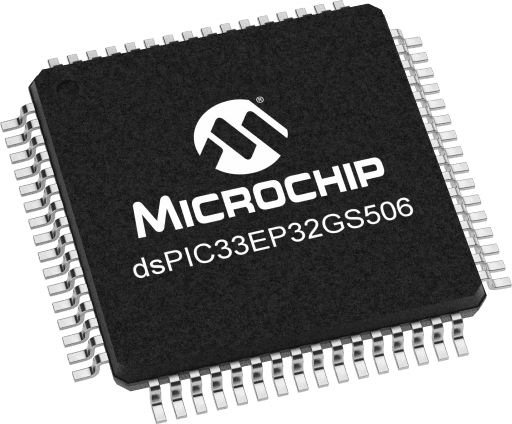

Microchip DSPIC33EP32GS506T-I/PT
