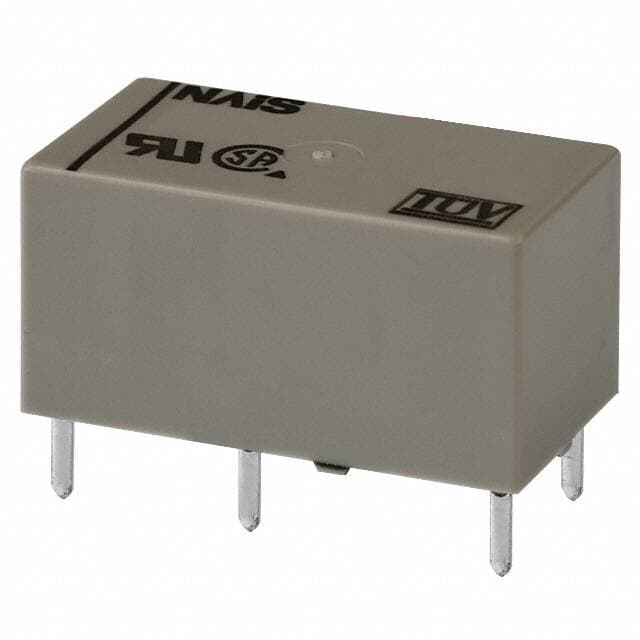

Panasonic DSP1-DC24V-F
Panasonic DSP1-DC24V-F

Panasonic DSP1-DC24V-F

Manufacturer No:

DSP1-DC24V-F

Manufacturer:

Panasonic

Package:

DIP

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSP1-DC24V-F information

Panasonic DSP1-DC24V-F technical specifications, attributes, parameters and parts with similar specifications to Panasonic DSP1-DC24V-F.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Contact Material
  • Silver Tin Oxide (AgSnO)
  • Mounting Type
  • Through Hole
  • Package / Case
  • DIP
  • Surface Mount
  • NO
  • Number of Pins
  • 6
  • Operating Temperature
  • -40°C~65°C
  • Packaging
  • Bulk
  • Series
  • DSP
  • Published
  • 2000
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • PC Pin
  • ECCN Code
  • EAR99
  • Additional Feature
  • POLARIZED
  • Power Rating
  • 300mW
  • Voltage - Rated DC
  • 30V
  • Pitch
  • 2.54mm
  • Packing Method
  • BOX
  • Depth
  • 11mm
  • Current Rating
  • 5A
  • Reference Standard
  • CSA; TUV; UL
  • Termination Style
  • PC Pin
  • Voltage - Rated AC
  • 250V
  • Physical Dimension
  • 20.2mm x 11mm x 10.5mm
  • Insulation Resistance
  • 1GOhm
  • Contact Current(DC)-Max
  • 5A
  • Sealing
  • WATER PROOF
  • Max Voltage Rating (AC)
  • 250V
  • Max Current Rating
  • 5A
  • Electrical Life
  • 100000 Cycle(s)
  • Throw Configuration
  • DPST, SPST
  • Max Voltage Rating (DC)
  • 30V
  • Contact Form
  • DPST-NO/NC (1 Form A, 1 Form B)
  • Relay Type
  • General Purpose
  • Contact Current(AC)-Max
  • 5A
  • Coil Resistance
  • 1.92kOhm
  • Contact (AC) Max Rating R Load
  • 5A@250VAC
  • Operate Time
  • 10ms
  • Coil Voltage
  • 24VDC
  • Coil Type
  • Non Latching
  • Switching Voltage
  • 250VAC 30VDC -Max
  • Coil Current
  • 12.5mA
  • Release Time
  • 5ms
  • Contact (DC) Max Rating R Load
  • 5A@125VDC
  • Must Operate Voltage
  • 19.2VDC
  • Power Consumption
  • 300mW

Download datasheets and manufacturer documentation for Panasonic DSP1-DC24V-F.

Datasheets:

Other Related Documents:

PCN Packaging:

Description:

The Panasonic DSP1-DC24V-F is a power relay with a 1NO (normally open) and 1NC (normally closed) contact configuration. It has a rated voltage of 250VAC and 30VDC, and a rated current of 5A. It is designed for use in a wide range of applications, including industrial, automotive, and consumer electronics.

Features:
? 1NO and 1NC contact configuration
? Rated voltage of 250VAC and 30VDC
? Rated current of 5A
? High switching capacity
? Low power consumption
? High reliability
? Long life
? RoHS compliant

Applications:
The Panasonic DSP1-DC24V-F power relay is suitable for a wide range of applications, including industrial, automotive, and consumer electronics. It can be used for controlling motors, pumps, solenoids, and other electrical loads. It is also suitable for use in home appliances, lighting systems, and other electronic devices.
