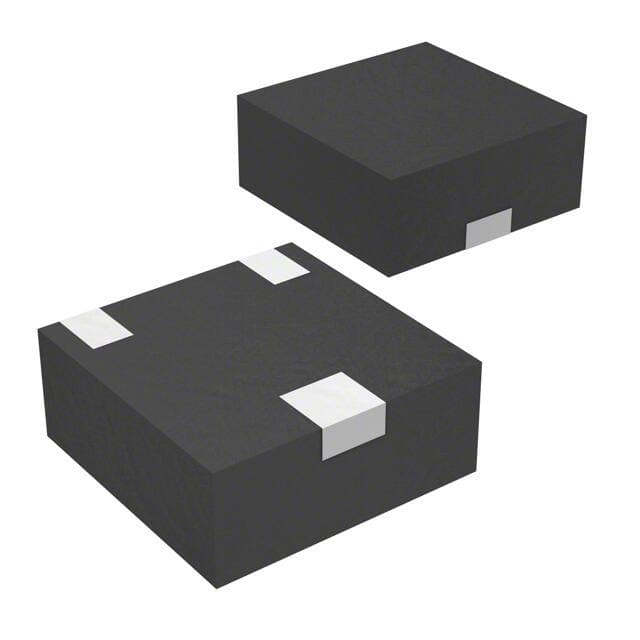

DIODES DMP21D0UFD-7

Manufacturer No:

DMP21D0UFD-7

Manufacturer:

DIODES

Package:

3-UDFN

Description:

MOSFET (Metal Oxide) P-Channel Tape & Reel (TR) 495m ? @ 800mA, 4.5V ±8V 80pF @ 10V 3nC @ 4.5V 20V 3-UDFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DMP21D0UFD-7 information

DIODES DMP21D0UFD-7 technical specifications, attributes, parameters and parts with similar specifications to DIODES DMP21D0UFD-7.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
3-UDFN

Number of Pins
3

Transistor Element Material
SILICON

Operating Temperature
-55°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2011

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Additional Feature
LOW THRESHOLD

Subcategory
Other Transistors

Technology
MOSFET (Metal Oxide)

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
3

Number of Elements
1

Number of Channels
1

Power Dissipation-Max
490mW Ta

Operating Mode
ENHANCEMENT MODE

Turn On Delay Time
7.1 ns

FET Type
P-Channel

Transistor Application
SWITCHING

Rds On (Max) @ Id, Vgs
495m ? @ 800mA, 4.5V

Vgs(th) (Max) @ Id
1.2V @ 250?A

Input Capacitance (Ciss) (Max) @ Vds
80pF @ 10V

Current - Continuous Drain (Id) @ 25°C
820mA Ta

Gate Charge (Qg) (Max) @ Vgs
3nC @ 4.5V

Rise Time
8ns

Drain to Source Voltage (Vdss)
20V

Drive Voltage (Max Rds On,Min Rds On)
1.5V 4.5V

Vgs (Max)
±8V

Fall Time (Typ)
18.5 ns

Turn-Off Delay Time
31.7 ns

Continuous Drain Current (ID)
820mA

Gate to Source Voltage (Vgs)
8V

Drain-source On Resistance-Max
0.495Ohm

Drain to Source Breakdown Voltage
-20V

REACH SVHC
No SVHC

Radiation Hardening
No

Download datasheets and manufacturer documentation for DIODES DMP21D0UFD-7.

Environmental Information:

diodesincorporated-desd5v0s1ba7-environmentalinformation-9032.pdf

PCN Assembly/Origin:

diodesincorporated-d26v0h1u2lp207-pcnassemblyorigin-9313.pdf

DMP21D0UFD-7 Overview

Op amps with either input grounded have a fixed input capacitance parameter, CI, and this device has a 80pF @ 10V maximal input capacitance.Devices can conduct a maximum continuous current of 3 amps in the drain area, so the continuous drain current (ID) for this device is 820mA amps.In this device, the drain-source breakdown voltage is -20V and VGS=-20V, so the drain-source breakdown voltage is -20V in this case.It is [31.7 ns] because it takes time to charge the input capacitance of the device before drain current conduction can begin.A turn-on delay time of 7.1 ns indicates the time it takes for the input capacitance of the device to charge before drain current conduction starts.Generally, the gate-source voltage (VGS) of a FET transistor is the voltage across its gate-source terminal, which is 8V.To operate this transistor, you will need a 20V drain to source voltage (Vdss).A device like this reduces its overall power consumption when it uses drive voltage (1.5V 4.5V).

DMP21D0UFD-7 Features

a continuous drain current (ID) of 820mA
a drain-to-source breakdown voltage of -20V voltage
the turn-off delay time is 31.7 ns
a 20V drain to source voltage (Vdss)

DMP21D0UFD-7 Applications

There are a lot of Diodes Incorporated
DMP21D0UFD-7 applications of single MOSFETs transistors.

Synchronous Rectification for ATX 1 Server I Telecom PSU
Motor drives and Uninterruptible Power Supplies
Micro Solar Inverter
DC/DC converters
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
Telecom 1 Sever Power Supplies
Industrial Power Supplies
