DIODES DML3009LDC-7

Manufacturer No:

DML3009LDC-7

Manufacturer:

DIODES

Package:

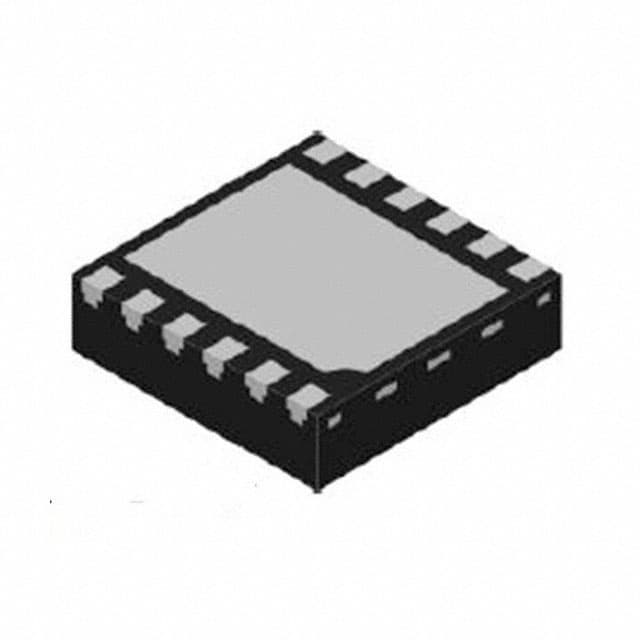

12-WFDFN Exposed Pad

Description:

N-Channel 0.5mm PMIC 3.3V 12-WFDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DML3009LDC-7 information

DIODES DML3009LDC-7 technical specifications, attributes, parameters and parts with similar specifications to DIODES DML3009LDC-7.

Type
Parameter

Factory Lead Time
19 Weeks

Mounting Type
Surface Mount

Package / Case
12-WFDFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Number of Outputs
1

Output Type
N-Channel

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
3V

Interface
On/Off

Output Configuration
High Side

Voltage - Supply (Vcc/Vdd)
3V~5.5V

Input Type
Non-Inverting

Switch Type
General Purpose

Ratio - Input:Output
1:1

Voltage - Load
0.5V~13.5V

Fault Protection
Short-Circuit, Thermal Shutdown, UVLO

Rds On (Typ)
6.1m ?

Built-in Protections
TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

Output Current Flow Direction
SINK

Length
3mm

Height Seated (Max)
0.85mm

Width
3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for DIODES DML3009LDC-7.

Environmental Information:

diodesincorporated-desd5v0s1ba7-environmentalinformation-9032.pdf

DML3009LDC-7 Overview

Tape & Reel (TR) is the way it's packaged.Package 12-WFDFN Exposed Pad contains it.The lighting driver has the mounting type Surface Mount.It owns the General Purpose switch type.Keeping the temperature at -40°C~85°C TA ensures reliable operation.The LED driver has 1 outputs.Operation is based on 3V~5.5V supply voltage.Voltage output is N-Channel volts at maximum.It has a total of 12 terminations.It has 1 functions.The LED driver output is limited to 20AV.Supply voltages of 3.3V allow for high efficiency.The Vsup value (maximum supply voltage) is set to 5.5V.Normal operation requires a voltage above 3V for the supply voltage.

DML3009LDC-7 Features

Supplied from 3.3V

DML3009LDC-7 Applications

There are a lot of Diodes Incorporated
DML3009LDC-7 Power Switches ICs applications.

USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Hard Disk Drives
Solid-State Drives
