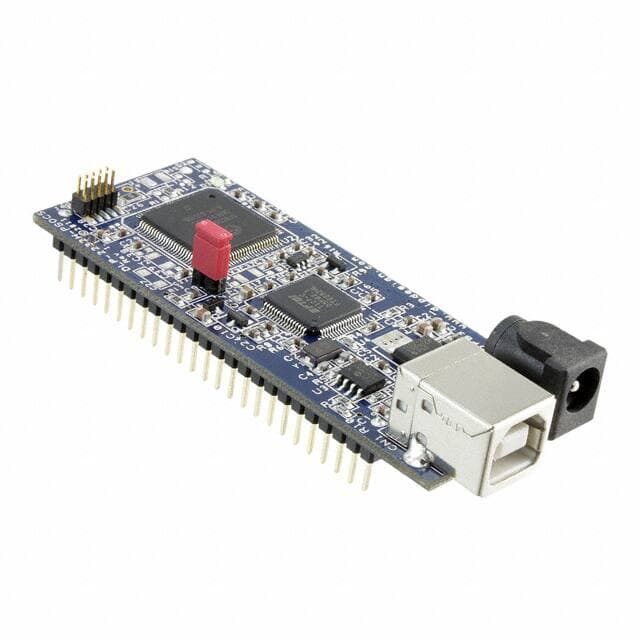

DLP Design Inc. DLP-2232H-PSOC5

Manufacturer No:

DLP-2232H-PSOC5

Manufacturer:

DLP Design Inc.

Package:

Module

Description:

MCU, USB Core CY8C5588 3 x 1.2 76.2mmx30.5mm 0°C~70°C 256KB USB - B, Pin Header USB 64KB 67MHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DLP-2232H-PSOC5 information

DLP Design Inc. DLP-2232H-PSOC5 technical specifications, attributes, parameters and parts with similar specifications to DLP Design Inc. DLP-2232H-PSOC5.

Type
Parameter

Package / Case
Module

Operating Temperature
0°C~70°C

Series
USB

Published
2012

Size / Dimension
3 x 1.2 76.2mmx30.5mm

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Connector Type
USB - B, Pin Header

Frequency
67MHz

Operating Supply Voltage
5V

Interface
I2C, SPI, UART

RAM Size
64KB

Core Processor
CY8C5588

Module/Board Type
MCU, USB Core

Flash Size
256KB

Co-Processor
FT2232H

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for DLP Design Inc. DLP-2232H-PSOC5.

Datasheets:

dlpdesigninc-dlp2232hpsoc5-datasheets-6918.pdf

DLP-2232H-PSOC5 Overview

A MCU, USB Core-type board or module is used in this microcontroller.Processors with CY8C5588 cores drive it.The microcontroller is set to 0°C~70°C by default, which is the default setting.Flash size on this MCU electronics is 256KB.Microprocessor chip is a type USB - B, Pin Header connector.In the USB series, this is one of the microcontrollers.The RAM size has been reduced to 64KB in order to ensure that the software runs normally.At a frequency of 67MHz, MCU chip can continue to function accurately.Package Module is included.There is a FT2232H Core Processor in it.An operating voltage of 5V volts is required to run this microcontrollers.

DLP-2232H-PSOC5 Features

Core processor of CY8C5588
Flash size of 256KB

DLP-2232H-PSOC5 Applications

There are a lot of DLP Design Inc.
DLP-2232H-PSOC5 Microcontroller, Microprocessor, FPGA Modules applications.

Medical Devices
Data Acquisition
Industrial Control
Process Control
Process Monitoring
Healthcare Monitoring
Patient Monitoring
IoT Secure Gateways
Human Machine Interface
Human Machine Control Panel
