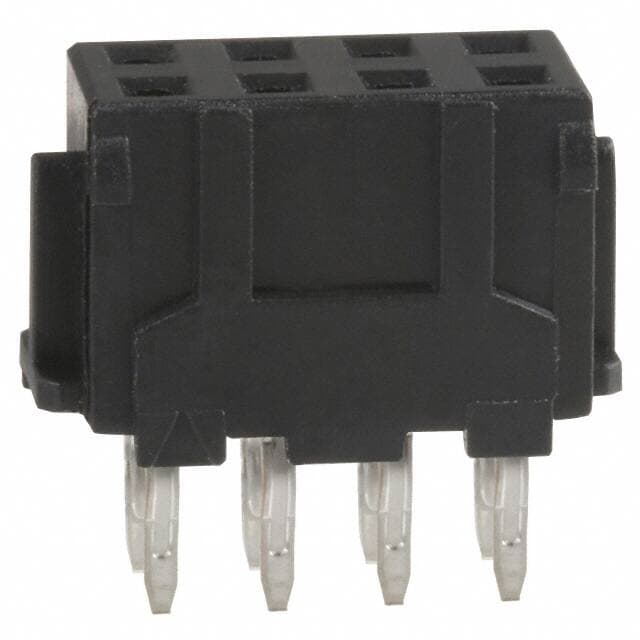

HIROSE DF11-8DS-2DSA(06)
HIROSE DF11-8DS-2DSA(06)

HIROSE DF11-8DS-2DSA(06)

Manufacturer No:

DF11-8DS-2DSA(06)

Manufacturer:

HIROSE

Package:

Description:

2 Rows Receptacle Press-Fit, Solder Brass Through Hole Bulk Gold Polyamide (PA), Nylon 8 Positions Female Socket

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DF11-8DS-2DSA(06) information

HIROSE DF11-8DS-2DSA(06) technical specifications, attributes, parameters and parts with similar specifications to HIROSE DF11-8DS-2DSA(06).

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Polyamide (PA), Nylon
  • Housing Material
  • Plastic
  • Operating Temperature
  • -30°C~85°C
  • Packaging
  • Bulk
  • Series
  • DF11
  • Published
  • 2008
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Press-Fit, Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle
  • Number of Positions
  • 8
  • Applications
  • General Purpose
  • Number of Rows
  • 2
  • Voltage - Rated
  • 250V
  • Fastening Type
  • Friction Lock
  • Subcategory
  • Headers and Edge Type Connectors
  • Contact Finish - Mating
  • Gold
  • MIL Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Female Socket
  • Mixed Contacts
  • NO
  • Orientation
  • Straight
  • Insulation Height
  • 0.244 6.20mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Reach Compliance Code
  • unknown
  • Current Rating
  • 2A
  • Pitch - Mating
  • 0.079 2.00mm
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL, CSA
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 0.394 inch
  • Row Spacing - Mating
  • 0.079 (2.00mm)
  • Contact Length - Post
  • 0.118 3.00mm
  • Number Of PCB Rows
  • 2
  • Lead Pitch
  • 2mm
  • Contact Finish - Post
  • Tin
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.197 inch
  • Contact Gender
  • Female

Download datasheets and manufacturer documentation for HIROSE DF11-8DS-2DSA(06).

Datasheets:

DF11-8DS-2DSA(06) Overview


Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the DF11 Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose.Through Hole represents the mounting point for the part.-30°C~85°C Operating Temperature is the default operating temperature for the device.

DF11-8DS-2DSA(06) Features


DF11 series


DF11-8DS-2DSA(06) Applications


There are a lot of Hirose Electric Co Ltd
DF11-8DS-2DSA(06) Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
